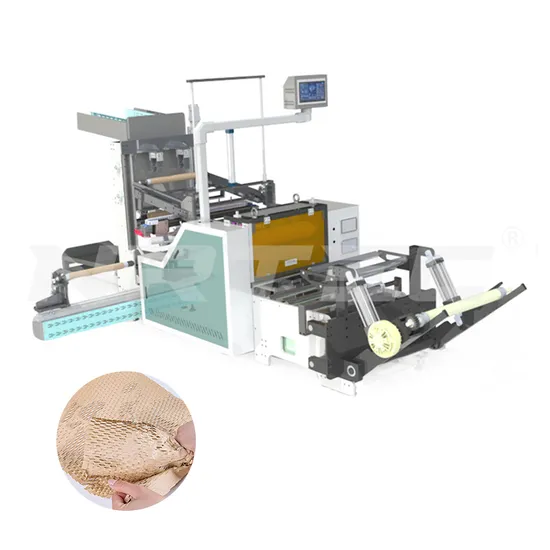

Elite Supplier Better Dust-Proof Skid Protective Packaging Protective Kraft Paper Cushion Honeycomb Paper Machine

Product Description

Product Parameters

Item	Honeycomb Paper Making Machine
Type	Full-automatic machine
MOQ	1 Sets
Warranty	1 Years
Logo & Color	Accept logo and color customization
Machine Size	L*W*H (4840*2288*2100)
Speed	50-280m/min
Effective Width Of Die-cutting Stick	550

Effective Unwind Width	540mm
Power	6KM
Voltage	380V/50HZ
Weight	2500KG
Die-cutting Roll	Φ240*600(Helical Tooth)
Die Cutting Bottom Roller	Φ240*600(alloy steel+main servo drive)
Wrap-Up	300 Roller Friction Winding
Automatic Feeding Device	1.5KW Hydraulic System

Automatic Tube Loading Device	(Automatic loading of paper tube + automatic loading of inflatable shaft + automatic pumping + automatic placement of inflatableshaft + automatic winding of inflatable shaft + automatic placement of finished product)
Contact Us	Click here get more detials

Customizable
Product Description
Fully Automatic Production
Independently develops a fully automatic honeycomb paper die-cutting machine. One equipment advantage, is fully automatic loading and unloading of paper tubes, fully automatic winding and unwinding. No need for manual supervision, one person can watch several machines. High Quality Die-cutting Rollers
Die-cutting rollers made of cold-worked die steel. We produce knife molds independently. With 3 million meters of knife moldsrequiring no sharpening. High Speed Operation
Die cutting speed is 50 to 280 meters per minute. 1-5 rolls per minute and 60-300 rolls per hour.Meet your high production needs Automatic Cutting And Rewinding
You can set any number of meters or rolls, and it will automatically cut and rewind. When the total output reaches this number, the system will stop and alarm. Easy To Use
Fully automatic loading and unloading of the paper tubes, fully automatic winding, and unwinding for manual lifting, friction typewinding automatic adjustment of front and rear tension adjustable winding tightness, designed with paper tube to placement areacan place 40 to 50 paper tubes. Perfect Honeycomb Paper
The cut honeycomb paper is easy to stretch.Honeycomb paper is green and environmentally friendly. Good protection can replace plastic bubbles, packaging, and cushioning.


FAQ
1.What is the MOQ?
As long as we can do it, there is no minimum order requirement,
including most customization.
Please consult our sales staff for details.
2.Are you a manufacturer and trading company?
We are an eco-friendly packaging manufacturer with 8 years of experience.
We have our own R & D team, production plant, sales team.
We are good at product customization and various product requirements.
3.What is your warranty terms?
Based on the reliability and stability of the equipment, the warranty period of
our equipment is 1 year.
4.Which Payment terms you can offer?
We accept T/T, ****** trade assurance and other terms,
We accept ex-Work, FOB, and C&F/CIF terms.
5.What is the delivery times?
Sample: 3-7 working days,
FCL container: 15-30 days,(Depends on order product type)
Customizing printing: 5 working days longer for the first order.
6.How does your factory do regarding quality control?
We have an independent quality department, which tracks the production process in all aspects, and has a series of production process report records.
7. Can OEM&ODM be supported?
Our company supports OEM and ODM, We have rich experience in brand support and can well support your brand plan.
8.How is your after-sales service guaranteed?
During the warranty period, we provide free accessories and professional technicians.
