103 High Speed Automatic Label Cutting Machine; Woven Label Cutter

Product Description

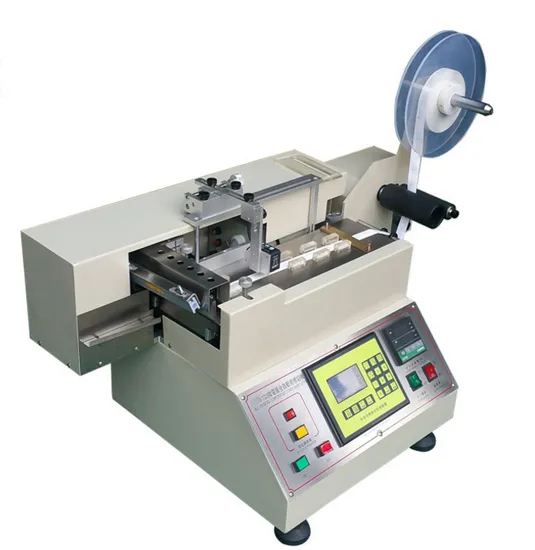

X-103 High speed automatic label cutting machine ;Woven label cutter
This machine applies to the cutting materials of fabric tape brand, woven lable,color riband, textile braid, fabric tape, nylon tape, slide fastener,safety belt,magic stick, kitbag belt, elastic, label. Application:handbag, luggage, garment, electron, shoemaking, gift etc
1This belt/webbing cutting machine is suitable for cutting hot cut belt, textile belt, webbing, nylon belt, seat belt, backpack belt, elastic band, threaded belt, etc.
2High speed: it can cut 200 to 400 pieces per minute (50mm length as an example)
3Cutting shape: rectangle and quadrangle (customizable)
4High precision: each cut is monitored by a stepper motor to ensure high accuracy for each operation.
5The cut surface is flat: the hot knife can heat the cut surface of colored ribbons and light textile tapes at high temperature, and the seals are smooth and free from burrs.
6The blade is made of imported high quality steel and has a long service life.
7Automatic operation: just set the cut length and quantity you need, and the machine will do the rest automatically.
Automatic pause: once the material runs out, it will automatically stop working. The alarm automatically alarms.
Memory function: before the switch is turned off, the cut-off length, quantity, and cut-off speed will be automatically stored.
File Storage: 9 files can be stored for easy retrieval at any time, reducing setup time.
Machine detail spare parts

Cut material : it can cut different shape
Product DescriptionFeatures :
* It can cut all kinds of shape ,such as wallow tail; trapezoid ; bevel angle ,zig-zag edge ,and other shape ,It only change a
cutter is OK
* High speed: It can cut 200~400 cut per minute. (50mm long)
* Accuracy: Cut-length is accurate cwing to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works autoally only by setting length and quantity
* Automatic stopper: It stops autoally if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
* Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

Model	X-103	X-103H	X-103S
Type	Computer type	Computer type	Computer type (with auto stacking function)
Power/output	220V/1.5KW	220V/1.5KW	220V/1.5KW
Weight	80kgs	80kgs	92kg
Dimension	78*60*73cm	78*60*73cm	107*57*75cm
Cutting length	1-90cm	1-99cm	1-99cm
Cutting width	1-12.5cm	1-12.5cm	1-12.5cm
Cutting speed	200pcs/min	600pcs/min	300pcs/min

Apply for
Relate Machines
Our Advantages
After Sales ServiceWe Provide * Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.Service * QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
