Cage Pallet High Quality Directly Factory Supplier Steel Pallet Cage

Product Description

Cage Pallet High Quality Directly Factory Supplier Steel Pallet Cage

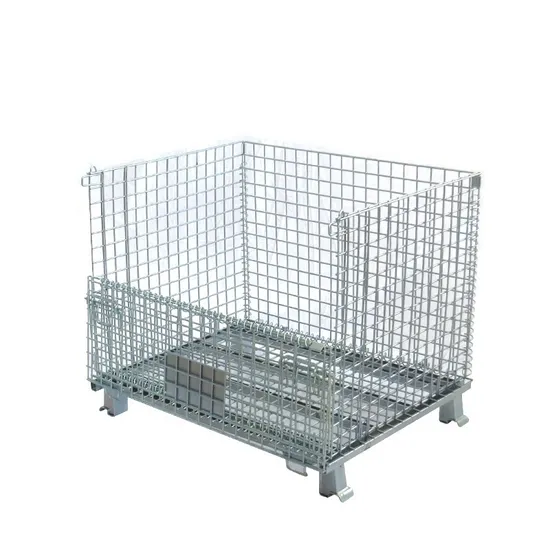

Wire mesh pallet container also known as butterfly cage, storage cage, pallet cage, high-quality steel hardened by the cold welded high strength, load capacity, rugged, and convenient transportation, can re-use reduce the storage and packaging enterprise human consumption costs, not only for plant production workshop, warehouse and transportation turnover, can also be used as a display of supermarket sales and warehouse.
Key Features
1. A type of popular industrial container with the function of pallet and cage.
2. Widely used for bulk materials handling, transportation and storage, especially for automotive parts, accessories and spare parts, hardware,machinery, electronics
3. Be made of dot welded line steel with the bottom part of U shape steel weld support to reach the enforcement of the structure.
4. Stack up to three cages high easily.
5. Half drop front gate, allows easy access into cage even when stacked.
6. Electric galvanized surface treatment, so it is beautiful and durable.
7. High load capacity to 500-2000kg.
Size:

A series
Style No.	Wire dia	Wire mesh	Outside dimension	Inside dimension	Load capacity
BW-A01	5.5mm	50*50mm	800x600x640mm	750x550x500mm	600kg
BW-A02	4.8mm	50*50mm	800x600x640mm	750x550x500mm	500kg
BW-A03	4.8mm	50*100mm	800x600x640mm	750x550x500mm	400kg

B series
Style No.	Wire dia	Wire mesh	Outside dimension	Inside dimension	Load capacity
BW-B01	6.0mm	50*50mm	1000x800x840mm	950x750x700mm	1200kg
BW-B02	5.5mm	50*50mm	1000x800x840mm	950x750x700mm	1000kg
BW-B03	5.5mm	50*100mm	1000x800x840mm	950x750x700mm	900kg
BW-B04	4.8mm	50*50mm	1000x800x840mm	950x750x700mm	800kg
BW-B05	4.8mm	50*100mm	1000x800x840mm	950x750x700mm	600kg

C series
Style No.	Wire dia	Wire mesh	Outside dimension	Inside dimension	Load capacity
BW-C01	6.0mm	50*50mm	1200x1000x890mm	1150x950x750mm	1600kg
BW-C02	5.5mm	50*50mm	1200x1000x890mm	1150x950x750mm	1200kg
BW-C03	5.5mm	50*100mm	1200x1000x890mm	1150x950x750mm	800kg
BW-C04	4.8mm	50*50mm	1200x1000x890mm	1150x950x750mm	800kg
BW-C05	4.8mm	50*100mm	1200x1000x890mm	1150x950x750mm	700kg
BW-C06	4.8mm	100*100mm	1200x1000x890mm	1150x950x750mm	500kg

Productions:
Applications:
1.Q: Are you a factory or trading company? A: We are a factory. We are specialized in all kinds of warehouse storage rack. 2.Q: Where is your factory located? How can I visit there? A. Our factory is located in Cangzhou, Hebei Province, China. You are warmly welcome to visit us whenever you are available! 3.Q: What is the raw material of your products? A: As general, the raw material of steel code is Q235. 4.Q: What is the term of payment? A: As general, 30% payment in advance by T/T and balance before shipping. 5.Q: What is delivery times? A: In general, within 15 days. It also depends on the order quantity and racking types. 6.Q: May I know the status of my order? A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time. 7.Q: Are samples available? A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients. 8.Q: How could you guarantee the products quality? A:We have professional engineer to check what size should be used to guarantee your load weight request. Before shipping, our quality control also would carefully check whether the quality is approved. 9.Q: How could I install the racks? A:We would provide detail install drawing to teach you how to install the racks. If needed, we also could provide engineer to instruct you installation. But related cost( Flight, living and eating) should be in your charge.
