Price of Gantry Crane Single Girder 5t 10t 15t 20t 25t 30t for Open Yard

Product Description

Product DescriptionPrice of Gantry Crane Single Girder 5t 10t 15t 20t 25t 30t for Open Yard

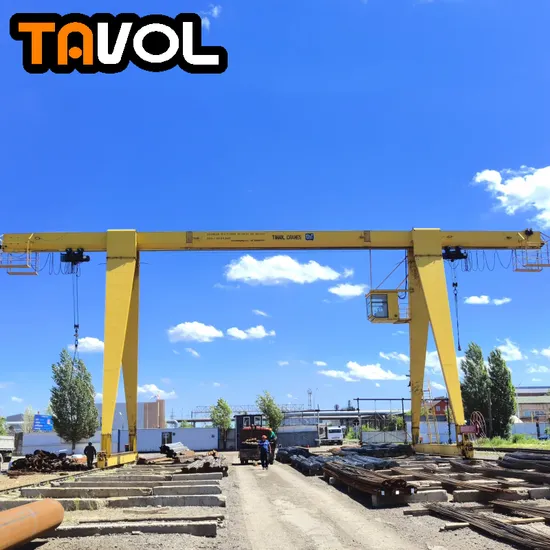

Gantry crane is similar to a bridge crane, but instead of moving on suspended runways, the crane uses legs to support the bridge, and the electric hoist. The crane legs travel on fixed rails embedded in, or laid on top of the floor.
Gantry crane is used in an outdoor or indoor applications where full beams and columns can't be installed, or may be used below an existing bridge crane system. Gantry Crane can most commonly be found in shipyards, railyards, special outdoor projects like the construction of a bridge, or in places like steel mills where overhead room may be an issue.
Tavol brand overhead crane adopts Shanghai Huyuan brand brake motor which is not only with good appearance, but also coming with gear oil before leaving factory. Clients do not need to replace the gear oil within three years.
The output shaft of the motor is carburized and quenched, with strong bearing capacity. The connecting plate is made of high-rigidity cast iron, which is stronger and safer.
By optimizing the gear parameters, the speed of the granule is reduced. At the same time, the electromagnetic braking technology imported from Germany is used to make the performance more stable, and at the same time greatly reduce the mechanical noise, so that the operation is really in a lower working noise.
Product Parameters

Project location	Philippines
Lift Capacity	10 Tons
Span	12 Meters
Lift height	10 Meters
Work duty	M4/A4
Control type	Wireless remote
Electrical parts	Chint brand
Runway	P24 with accessories
Lifting motor	13KW
Lifting speed	0-7M/Min, frequency inveter control
Cross travel motor	0.8KW X 2, frequency inverter control
Cross travel speed	0-20M/Min
Long travel motor	1.5KW X 2, frequency inverter control
Long travel speed	0-20M/Min
Power cable	3 X 10MM2
Cable reel	JTT50
Control voltage	36V AC
Power supply	220V/60Hz/3P

Detailed PhotosOur Advantages1. We are manufacturer and we have rich experiences in designing and fabricating.
2. All machines will be tested before shipment, 100% qualitified.
3. With CE and ISO certificate.
4. 7X24 hours technical support through email, telephone or video online.
5. User-friendly English manual for machine operation and maintenance.
6. Free spare parts will be provided.
7. Professional design drawing will be provided.
8. All the steel materials are from Baosteel, Laigang Group with guaranteed quality.
9. All the raw materials will be inspected strictly.
10. Professional guidance, installation and trainning team are available.
Packaging & ShippingCompany ProfileShandong Tavol Machinery Co., Ltd has been specialized in delivering one stop overhead crane solutions to worldwide customers for 30 years. Our high quality products include single girder overhead crane, double girder overhead crane, single girder gantrycrane, double girder gantry crane, etc.
Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC. FAQIf you want to get a price of our Gantry Crane, please help to confirm the details as below:
1. Where will your gantry crane be installed, inside or outside?
2. Lift capacity? 3 ton, 5 ton, 10 ton or 16 ton?
3. Span?
4. Lift height? 6 meters, 9 meters or 12 meters?
5. Travel length?
6. Power supply in your local? Is 380V/50Hz/3P?
7. Nearest sea port? We will quote you a CFR price for your reference.
