5 (4+1) Axis CNC Bridge Saw with Router of 18000rmp for Stone Marble Granite Quartz Countertop Cutting & Milling, Miter Cutting, Slab Tile Sink Cut out Machine

Product Description

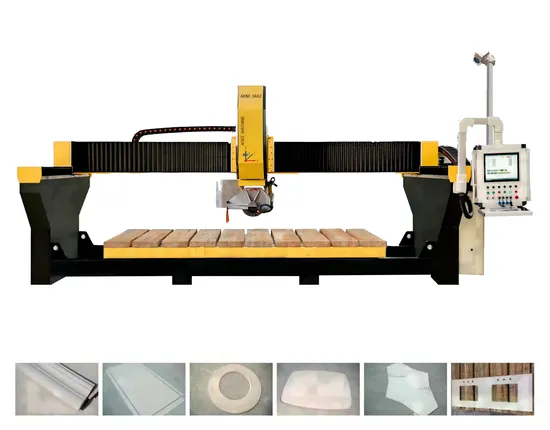

4+1 AXIS CNC Bridge saw Cutting Machine AKNC-5A02
With Milling speed of 18000RPM Product Description
4+1 Instructions: In addition to the orthogonal cutting, sculpting and milling function like original bridge saw machine, this CNC machine can also achieve 45 degrees of chamfering cutting, polygonal cutting, outer circular cutting, and line processing.
It is very convenient for processing various special-shaped desktop, vanity top table, coffee table, and complex cutting designs.
It has an independent research and development operating system, which supports intelligent identification of CAD drawings, and is easy to learn.
Featuring as smaller installation space, higher precision and efficiency, more simple operation, this CNC bridge saw machine is your best choice for processing stone.

Product Parameters

X-axis route	3500mm		Cutting thickness	0-80mm
Y-axis route	2200mm		Worktable size	3200*2000mm
Z-axis route	260mm		Worktable tilting	85°
A-axis route	45°		Main motor power	11KW, 15KW
C-axis route	±360°		Total power	25KW
Saw blade diameter	350-400mm		Secondary motor power	4.5KW
Saw blade speed	0-2900 r/min		Gross weight	3600KG
Machine dimension(L*W*H)			5300*3000*2500mm

Detailed Photos

Packaging & Shipping
This 5 axis CNC Bridge saw machine can be loaded into a 20'GP Container.

Installation Instructions
1. There are guide videoes showing how to use machine, and English instruction manual sent to you with machine.
If there is still have any question, we will provide free professional online training for you until you can run the machine well.
2. You can come to our factory to learn the installation and operation.
3. We can send enginner to help you install and teach you use the machine.

After Sales Service
Our CNC bridge saw machines have remote troubleshooting function, our enginner can solve most problems by remote control, otherwise we will give video guide.
