US$0.33
3,000-4,999 Meters
US$0.32
5,000-9,999 Meters
Basic Info.
Compound Material
Aluminium Plastic Compound Pipe
Installation and Connection
Clamping Type Installation
Technology of Plastic Composite Pipe
Internal and External Coating
Base Pipe of Plastic Composite Pipe
Seamless Steel Tube
Internal Coating Materials of Plastic Composite Pipe
Polyethylene Coating Steel Pipe
Plastic Composite Pipe Coating Form
Inner and Outside Coating
Plastic Composite Pipe Model
1216
Steel Skeleton PE Pipe Use
Municipal
Aluminium Plastic Compound Pipe Use
Water Heater Tube
Steel Plastic Composite Pipe Model
Pex-Al-Pex-Pipe
Aluminium Plastic Compound Pipe Material
Crosslinked Polyethylene Aluminum Composite Pipe
Certificate
CE,ISO9001,Aenor ,Watermark
Type
Overlapped & Butt Welding
Transport Package
by Ctns or Bag
Production Capacity
50000m/Day
Packaging & Delivery
Package Size
100.00cm * 2.00cm * 2.00cm
Package Gross Weight
0.100kg
Product Description
AENOR approved 5 layers PEX Al Aluminum Plastic Composite pipes Multilayer pipe
Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapped and butt welding type.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevityDetailed Photos
Product Description

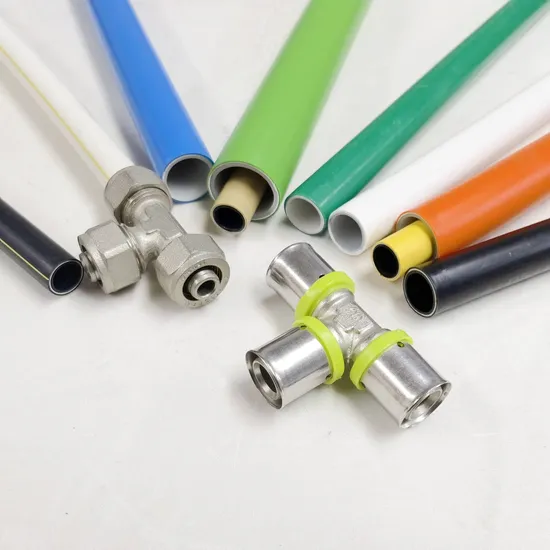

Markt PEX-AL-PEX pipe type and size:
1,Type ,butt welding and overlapped
2,Color,white ,yellow ,orange ,blue and black as need
3,Logo:OEM ,No Logo or cusotmer logo
4,Used for :Water and gas systems
5,Size ,from 16-63mm
6,Supplly both pipe and fittings
ALUMINUNM PLASTIC COMPOSITE PIPE---overlaped PE(PEX)-AL-PE(PEX) |
Picture | Desc. | Modle No. | Spec. | Wall thickness(mm) | Qty/pack(M) |
| PE-AL-PE PIPE Cold water (MOLP-01) | MOLP12 | 0912 | 2.0 | 100/200/500 |
MOLP14 | 1014 | 2.0 | 100/200/500 |
MOLP15 | 1115 | 2.0 | 100/200/500 |
MOLP16 | 1216 | 2.0 | 100/200/500 |
MOLP18 | 1418 | 2.0 | 100/200 |
MOLP20 | 1620 | 2.0 | 100/200 |
MOLP22 | 1722 | 2.5 | 100/200 |
MOLP25 | 2025 | 2.5 | 50/100 |
MOLP26 | 2026 | 3.0 | 50/100 |
MOLP32 | 2632 | 3.0 | 50/100 |
MOLP40 | 3240 | 4.0 | 50/6 |
MOLP50 | 4150 | 4.5 | 50/6 |
MOLP63 | 5163 | 6.0 | 50/6 |
Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M |
| PE-AL-PE PIPE Gas systems (MOGP-01) | MOGP12 | 0912 | 2.0 | 100/200/500 |
MOGP14 | 1014 | 2.0 | 100/200/500 |
MOGP15 | 1115 | 2.0 | 100/200/500 |
MOGP16 | 1216 | 2.0 | 100/200/500 |
MOGP18 | 1418 | 2.0 | 100/200 |
MOGP20 | 1620 | 2.0 | 100/200 |
MOGP22 | 1722 | 2.5 | 100/200 |
MOGP25 | 2025 | 2.5 | 50/100 |
MOGP26 | 2026 | 3.0 | 50/100 |
MOGP32 | 2632 | 3.0 | 50/100 |
MOGP40 | 3240 | 4.0 | 50/6 |
MOGP50 | 4150 | 4.5 | 50/6 |
MOGP63 | 5163 | 6.0 | 50/6 |
Print:Logo PE-AL-PE gas pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M |
PEX-AL-PEX PIPE Gas systems (MOGP-02) | MOGP12 | 0912 | 2.0 | 100/200/500 |
MOGP14 | 1014 | 2.0 | 100/200/500 |
MOGP15 | 1115 | 2.0 | 100/200/500 |
MOGP16 | 1216 | 2.0 | 100/200/500 |
MOGP18 | 1418 | 2.0 | 100/200 |
MOGP20 | 1620 | 2.0 | 100/200 |
MOGP22 | 1722 | 2.5 | 100/200 |
MOGP25 | 2025 | 2.5 | 50/100 |
MOGP26 | 2026 | 3.0 | 50/100 |
MOGP32 | 2632 | 3.0 | 50/100 |
MOGP40 | 3240 | 4.0 | 50/6 |
MOGP50 | 4150 | 4.5 | 50/6 |
MOGP63 | 5163 | 6.0 | 50/6 |
Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M |
| PEX-AL-PE(X) Hot water pipe (MORP-01) (MORP-02) | MORP12 | 0912 | 2.0 | 100/200/500 |
MORP14 | 1014 | 2.0 | 100/200/500 |
MORP15 | 1115 | 2.0 | 100/200/500 |
MORP16 | 1216 | 2.0 | 100/200/500 |
MORP18 | 1418 | 2.0 | 100/200 |
MORP20 | 1620 | 2.0 | 100/200 |
MORP22 | 1722 | 2.5 | 100/200 |
MORP25 | 2025 | 2.5 | 50/100 |
MORP26 | 2026 | 3.0 | 50/100 |
MORP32 | 2632 | 3.0 | 50/100 |
MORP40 | 3240 | 4.0 | 50/6 |
MORP50 | 4150 | 4.5 | 50/6 |
MORP63 | 5163 | 6.0 | 50/6 |
Related products
PERT Pipe and Pex a+PEX b Pipes :
Insulation pipe +corrugated pipe for pex pipe and pert pipes
Brass fitting for pex-al-pex pipes:press fitting (U+TH Type)+screw fitting
Tools for pex-al-pex pipe and fittings:
Packaging & Shipping
Hangzhou Mark not only supply high and stable quality pipe and fitting but also supply pipe and fittings very quick .
Here our detail packing and shipment situation .A,Packing
1, Pipe pack in bar or roll
2,By plastic bag or carton
3,Pallet if need
4,50m/roll or 100m/roll when customer need
B:Shipment
1,Quick shipment
2,LCL shipment accept
3,ship by sea ,express or air as need Certifications
All Markt pipe and fittings produce under ISO9001 Sytems ,with certificates of CE ,WATERMARK ,AENOR.
All in high and stable quality ,guarantee 50 years of use .
We welcome your inquiry
ask sample
order !
Any question please contact with us .Or you can visit our web of Hangzhou Mark technological co.,ltd.There can find more of our products for water ,gas and heating .
