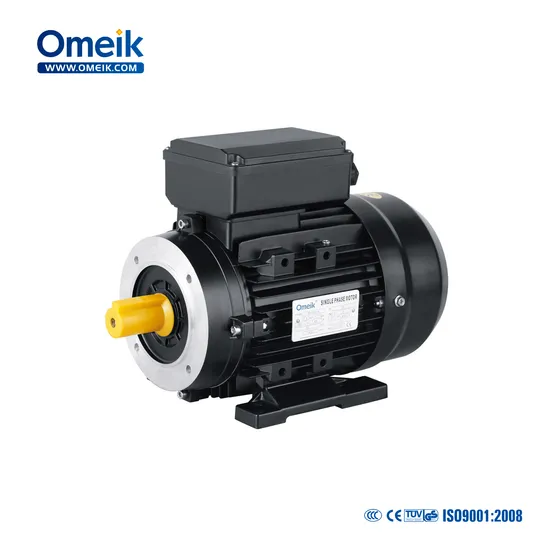

Hot Selling 220V Single Phase High Torque High Quality Low Noise Cheap Price AC Electric Motor (1/4HP-5HP)
Basic Info.
Model NO.
MY712-4
Number of Stator
Single-Phase
Species
My Single Phase Motor
Rotor Structure
Winding Type
Casing Protection
Closed Type
Number of Poles
2/4/6/8
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Ce
Brand
Omeik/OEM
Protection Class
IP44/IP54/IP55
Insulation Class
Class B/F
Mounting
B3/B5/B14/B34/B35
Cooling Method
IC0141
Winding
100% Copper Wire
Housing
Aluminum
Duty
Continuous(S1)
Transport Package
Carton or Plywood Pallets
Specification
0.25HP-3HP
Trademark
Omeik/OEM
Origin
Fuan, China
HS Code
8501520000
Production Capacity
5000 PCS/Month
Product Description
MY Series Electric single Phase Aluminium Housing MotorAdvantage:
1. Safety & reliable operation
2. Nice appearance
3. Low noises
4. Little vibration
5. Light weight
6. Simple construction.
Appliation:
MY series Hydraulic motors can be used on household appliance, pumps, fan and recording meters, etc.
Operating Conditions:
1. Ambient temperature: -15 º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.
| TYPE | Output | Voltage | Current | Speed | Eff | Power | Tstart/Tn | Ist/In | ||
| KW | HP | (V) | (A) | (r. p. m) | (%) | factor | ||||
| MY561-2 | 0.09 | 0.12 | 220 | 0.9 | 2730 | 54 | 0.9 | 0.85 | 4.5 | 1.7 |
| MY562-2 | 0.12 | 0.16 | 220 | 0.97 | 2730 | 58 | 0.9 | 0.85 | 4.5 | 1.7 |
| MY631-2 | 0.18 | 0.25 | 220 | 1.8 | 2740 | 63 | 0.9 | 0.8 | 4.5 | 1.7 |
| MY632-2 | 0.25 | 0.33 | 220 | 2.16 | 2740 | 65 | 0.9 | 0.8 | 4.5 | 1.7 |
| MY711-2 | 0.37 | 0.5 | 220 | 2.96 | 2750 | 68 | 0.95 | 0.8 | 4.5 | 1.7 |
| MY712-2 | 0.55 | 0.75 | 220 | 4.15 | 2760 | 69 | 0.95 | 0.8 | 4.5 | 1.7 |
| MY801-2 | 0.75 | 1 | 220 | 5.17 | 2780 | 70 | 0.95 | 0.7 | 4.5 | 1.7 |
| MY802-2 | 1.1 | 1.5 | 220 | 7.26 | 2790 | 71 | 0.95 | 0.7 | 4.5 | 1.7 |
| MY90S-2 | 1.5 | 2 | 220 | 9.67 | 2800 | 72 | 0.95 | 0.6 | 5 | 1.7 |
| MY90L-2 | 2.2 | 3 | 220 | 14.1 | 2800 | 73 | 0.95 | 0.6 | 5 | 1.7 |
| MY5614 | 0.06 | 0.08 | 220 | 0.68 | 1330 | 48 | 0.85 | 0.85 | 4.5 | 1.7 |
| MY5624 | 0.09 | 0.12 | 220 | 0.99 | 1340 | 49 | 0.85 | 0.85 | 4.5 | 1.7 |
| MY6314 | 0.12 | 0.16 | 220 | 1.22 | 1350 | 53 | 0.9 | 0.8 | 4.5 | 1.7 |
| MY6324 | 0.18 | 0.25 | 220 | 1.75 | 1360 | 57 | 0.9 | 0.8 | 4.5 | 1.7 |
| MY7114 | 0.25 | 0.33 | 220 | 2.2 | 1370 | 59 | 0.95 | 0.8 | 4.5 | 1.7 |
| MY7124 | 0.37 | 0.5 | 220 | 3.12 | 1370 | 62 | 0.95 | 0.8 | 4.5 | 1.7 |
| MY8014 | 0.55 | 0.75 | 220 | 4.2 | 1380 | 65 | 0.95 | 0.7 | 4.5 | 1.7 |
| MY8024 | 0.75 | 1 | 220 | 5.8 | 1380 | 68 | 0.95 | 0.7 | 4.5 | 1.7 |
| MY90S-4 | 1.1 | 1.5 | 220 | 7.6 | 1390 | 69 | 0.95 | 0.6 | 5 | 1.8 |
| MY90L-4 | 1.5 | 2 | 220 | 10.2 | 1400 | 70 | 0.95 | 0.6 | 5 | 1.8 |
SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply others.
