CE Certification Sheet Metal Suction Cups Safe Handling Vacuum Glass Lifter

Product Description

Product Description
Introducing the Herolift Glass Vacuum Lifting Machine: a pinnacle of automation that promises speed, safety, and convenience. Harnessing the advanced principle of vacuum adsorption, this machine utilizes a high-performance vacuum pump to create an unyielding vacuum at the suction cup's end. This ensures a secure grip on various workpieces, be it glass or metal sheets, allowing for seamless lifting and precise transportation to designated locations with its versatile rotatable mechanical arm.
Our glass vacuum lifter excels in the handling and transfer of diverse sheet materials, playing a pivotal role in the glass deep processing industry. Boasting a customizable cantilever and handling arm, each lifter is tailored to meet specific operational needs, ensuring optimal performance and adaptability.
Characteristic
Max.SWL 800KG
1. Achieve full manual rotation of 360° vertically and 90° horizontally, while leveraging electric controls for seamless taking and releasing.
2. Suction cup holders are designed to be retractable at both ends, accommodating significant size variations with ease.
3. Features a high-quality imported oil-free vacuum pump and valve for superior performance.
4. Engineered for efficiency, safety, and rapid operation while significantly reducing manual labor.
5. Equipped with an accumulator and pressure detection system to ensure uncompromised safety at all times.
6. Offers adjustable suction cup positions, with the capability for manual closure, enhancing operational flexibility.

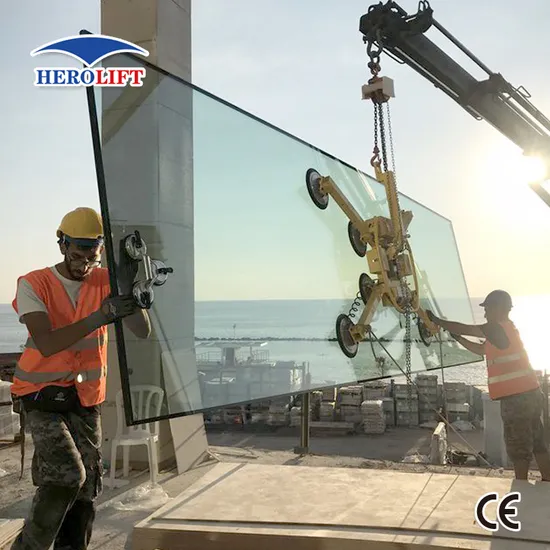

7. Seamlessly integrates with bridge cranes for intensive glass processing and handling tasks, or with cantilever cranes for precision glass curtain wall installation.

Serial No.	GLA600-8-B-M	Max capacity	600kg
Overall Dimension	1000X1000mmX490mm	Power supply	4.5-5.5 bar compressed air, Consumption of compressed air 75~94L/min
Control mode	Manual hand slide valve control Vacuum suction and release	Suction and release time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree(about0.85Kgf)	Alarm pressure	60%vacuum degree (about0.6Kgf)
Safety factor	S>2.0;Horizontal handling	Dead weight of equipment	95kg(approximate)
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Power control box •Control the vacuum pump •Displays the vacuum •Pressure alarm
Vacuum gauge •Clear display •Color indicator •High-precision measurement •Provide security	Vacuum pump •Create vacuum power •High negative pressure •Low energy consumption •Stable performance.

Specification

Model	GLA400-4-B-M	GLA600-8-B-M	GLA800-8-B-M
Max. load capacity	400kg	600kg	800kg
Performance	Load Movement: Manual rotation, 360° edgewise, with locking at each quarter point Manual tilt, 90°between upright and flat, with automatic latching in upright position.
Power System	DC12V	DC12V	DC12V
Charger	AC110-220V	AC110-220V	AC110-220V
Quantity of sucker	6	8	8
Packing Size	1000X1000mmX490mm
Total Height: 3.7meters Arm Length: 3.5meters (The column and swing arm are adjusted according to the actual situation of the customer) Column specifications: Diameter 245mm, Mount plate:Diameter 850mm Matters needing attention:The thickness of ground cement≥20cm

Detail display

1	Lifting hook	7	Extension beam
2	General Control box	8	Suction Pads
3	Power switch	9	Control handle
4	Buzzer	10	Air tube
5	Vacuum gauge	11	Vacuum pump
6	Volta meter	12	Support leg

Advantage
1. Ideal for transitioning between various types of glass, including hollow, laminated, raw, and tempered, this machine is a versatile powerhouse.
2. Incorporates a premium American DC vacuum pump alongside a DC battery, eliminating the need for external air or power sources during operation.
3. Equipped with a digital display vacuum pressure switch and battery charge indicator, ensuring clearer monitoring for safe equipment operation.
4. The vacuum pressure charging system maintains the entire vacuum system within a stable, safe pressure range during transitions.
Application
Glass Boards
Aluminum Boards
Steel Boards
Plastic Boards
Stone Slabs
Laminated chipboards

Service cooperation
Since its inception in 2006, Shanghai Herolift Automation Technology Co., Ltd has proudly served over 60 industries across more than 60 countries, establishing a robust and trusted brand presence for over 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
