High Precision Double Head Aluminum Profile Cutting Saw

Product Description

High Precision Double Head Aluminum Profile Cutting Saw
Machine feature:
1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
2. The profile cutting size adopts and digital display technique to ensure high efficiency and accuracy.
3. Imported carbide saw blade gives accurate processing and high efficiency.
4. Two cutting head can work together or single. When together work, one time can cut off the required length and angle
5. With digital display to show cutting length, easy operate.
Parameter:

Power supply	3N~50Hz 380/220V or As Customer Specification
Cutting motor power	4.4KW
Cutting motor rotary speed	2800r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	ø500×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Max. cutting length	4200 mm
Min. cutting length	400 mm
Cutting width	max 135mm
Cutting height	90 : max 300mm 45: max 200mm
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5700 mm×1750mm×1950mm
Weight	1800KGS

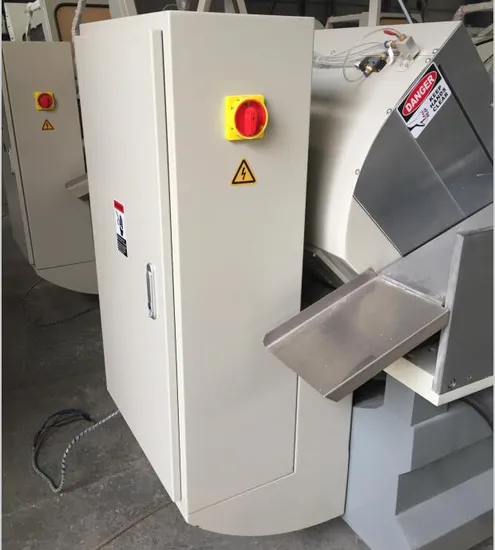

Machine details:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
