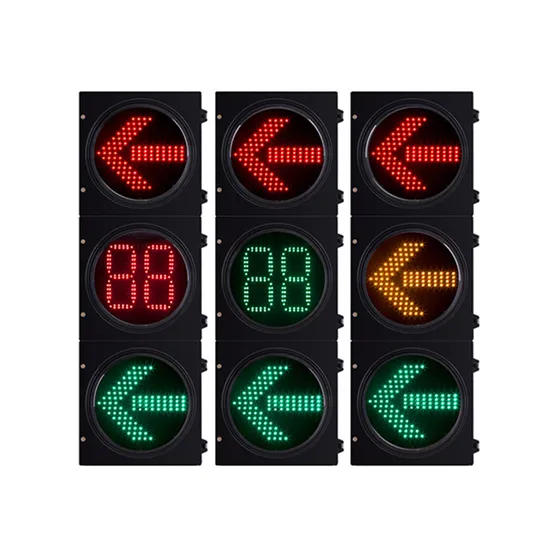

Cheap Price Hot Sale Brightness Waterproof IP66 Red Green Pedestrian Traffic Signal Light

Product Description

Professional LED TRAFFIC SIGNAL LIGHT Factory for 20 Years - Rich Experiecne In OEM/ODM
- Small Order Quantities Are Workable
- More Than 212 Customers Are Satisfied With Our Products & Service

Model No.	JD200-3-ZGSM-2-RG
Power	Red: ≤ 5W | Green: ≤ 5W
Operating Voltage	100-240VAC 50/60Hz | 12V or 24V DC
LED Q'ty	Red: 96 pcs | Green: 96 pcs
Apply Diameter	Ф200 mm (Ф8 inches)
Operating Temp.	-40~+75 ºC
Wavelength	Red: 625±5nm | Green: 500±5nm
Operating Humidity	10% ~ 90%
Visible Range	>500m
IP Rating	IP54
Warranty	1 Year
Housing Material	PC or Aluminum

Modular Multi-Aspects LED Signal Heads * Utilizing imported LED chip, long lifespan
* Using constant current driver, working voltage100-240VAC, low power
* Novel structure and beautiful appearance, using inflaming retarding and UV-proof housing material
* Long visible distance, symmetrical light distribution
* Multi-ply sealed water resistant, IP rating:>IP54
* In accordance with GB/14887-2011 and relevant International standard
* Visible distance: >500M
* Working humidity: ≤95%
* LED Driver: Constant current driver (Efficiency>85% PF>0.85)
Features:
1) available in D100/200/300/ 400mm; Combi signal (ie. D200mm+D300mm)
2) longevity of operation
3) vandal-proof design
4) vertical and horizontal mounting
5) low power consumption and brilliant light output
6) operating at the temperature of -40ºC to +74ºC
7) wide view angle
8) Compatibility with all traffic controllers

More than 50 countries have installed LED traffic signal light all over the world. Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks. Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products. Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
