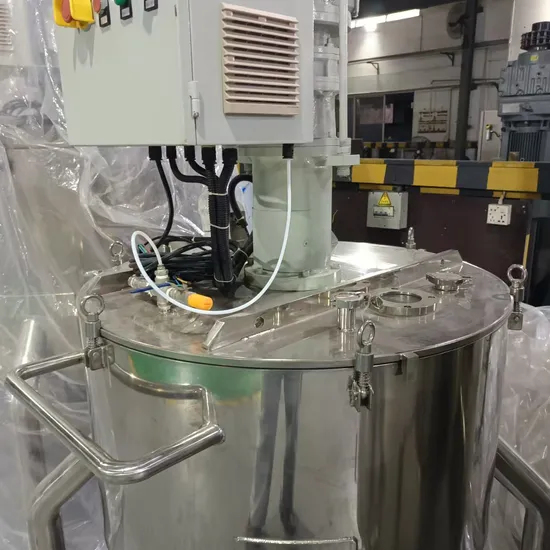

Hot Sale High Viscosity Mixer Transfer Tank for Lithium Battery Slurry Mixing
| US$2,500.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KR-Z100L
Application
Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical, Lithium Battery
Certification
CCC, CE, ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Hot Water Heating
Insulation Material
Hot Water Heating
Main Material
Stainless Steel
Mixing Capacity
100L
Mixing Drum Shape
Paddle and Disc
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Equipment Appearance
A3 Paiting, International Warm Grey
Standard Cinfiguration
Three Phase Asynchronous Motor
Motor
Variable Frequency Speed Regulation
Lift Mechanism
Optional
Design Capacity
149L
Efficient Usage Capacity
100L
Mixing Paddle Speed
40 Rpm
Mixing Power
1.1kw
Weight
0.26 Ton
Applicable Viscosity
Viscosity Less Than 100kcps
Applicable Slurry
Lithium Ion Battery Positive and Negative Electrod
Applicable Solvents
NMP, Deionized Water, etc
Applicable Additives
SBR,Cnt,Lithium Carbonate, etc
Equipment Failure Rate
Less Than 2%
Customized
Acceptable
Transport Package
Card Board
Specification
1080mmx950mm x 1920 mm( L x W x H )
Trademark
Career
Origin
China
HS Code
8479820090
Production Capacity
15000 Sets/Year
Product Description
Product Description Main configuration| No. | Item | configuration |
| 1 | Equipment appearance | A3 painting,International grey 1C |
| 2 | Three phase asynchronous Motor | Standard configuration |
| 3 | Variable frequency speed regulation | Standard configuration |
| 4 | Lift mechanism | Optional |
| 5 | Upper and lower liquid level detection | Optional |
| Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves. | ||
| Working principle | The mixing paddle is driven by a motor to stir inside the mixing tank, preventing the slurry from layering and settling, and maintaining the stability of the slurry during storage. |
| Usage | Used for the transfer and coating process of lithium-ion battery slurry storage, providing transfer storage for the transportation of slurry during the production process. |
| External dimensions | 1080mmx950mm x 1920 mm( L x W x H ) |
| Tank specification | Internal diameter φ650mm depth 500mm |
| Design capacity | 149L |
| Effective usage capacity | 100L |
| Mixing padle speed | 40 rpm |
| Mixing power | 1.1KW |
| Weight | About 0.26ton |
| Item | Capacity |
| Applicable viscosity | Viscosity ≤100Kcps |
| Applicable slurry | Lithium ion battery positive and negative electrode slurry |
| Applicable solvents | NMP, deionized water, etc |
| Applicable additives | SBR,CNT,Lithium carbonate, etc |
| Equipment capacity | Equipment failure rate ≤2%, |
| Equipment bearing temperature | 7ºC~80ºC,Customers are required to provide circulating hot and cold water |
| Temperature measurement accuracy | ± 2 degrees, customer needs to provide circulating hot and cold water |
| Internal tank pressure resistance | Long term water pressure ≤ 0.3Mpa, no deformation or leakage phenomenon |
| Not applicable | Acetone solvent |
Other optional models
Exhibition of Transfer Tank Structure and Accessories
Project case presentation
After Sales Service
FAQ 1.If I place an order, what is the usual delivery time? -About 45-60 days
2.How do you meet my needs.You need to tell us your production capacity, mixing materials, and the remaining requirements mentioned in particular. We will provide you with a solution based on your needs. At the same time, we will establish a dedicated production technology engineering communication and discussion group to ensure worry free throughout the process.
3.Can you provide on-site installation and debugging services?
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production.
