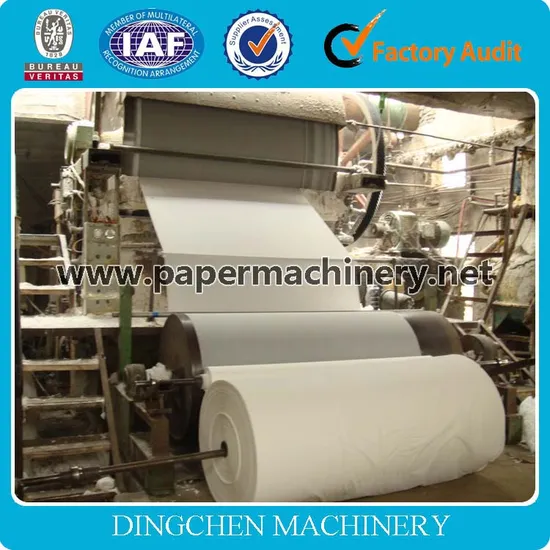

Tissue Toilet Paper Making Machinery and Finished Serviette Paper Machine

Product Description

Tissue Toilet Paper Making Machinery And Finished Napkin Serviette Paper Machine
Technical parameters :
1.Raw material:waste paper, wood pulp
2. Output paper: tissue paper, serviette paper
3. Output paper weight: 15-25g/m2
4.Capacity: 12 tons per day
5. Max net paper width: 3000mm
6. Wire width: 3300mm
7.Working speed: 130-150m/min
8. Designing speed: 200m/min
9. Rail gauge: 3900mm
10. Drive way: Alternating current frequency converter speed control, sectional drive.
11.Layout type:left or right hand machine.
Main Structures :
1.Cylinder mold part:
1800mm×3300mm×3900mm stainless-steel cylinder mold 1set. Φ600mm××3300mm×3900mm couch roll 1 set, coated by rubber,rubber hardness 38±2SR. Cylinder vat is made from stainless steel plate.

2.Dryer part:
3000mm×3300mm×3900mm alloy dryer cylinder 1 set, with double-deck breath exhaust hood,Φ600mm×3300mm×3900mm touch roll 1 set, coated by rubber, rubber hardness 90±2SR.,pneumatic pressurizing device, with pneumatic scraper blade 2 sets.

3.Winding part:
Φ1000mm×3300mm×3900mm cooling cylinder 1 set ,winding paper on cooling cylinder.

4.Paper converting section:
2880mm rewinding machine with perforating and embossing: 1set,
Paper Cutting Machine: 1set, Plastic bag sealing machine: 1set
Main equipments of 2880mm Tissue Paper Serviette Paper Making Machinery:

NO.	Equipment	Qty(set)
1	2880mm single cylinder single wire & single felt high speed tissue paper machine	1
2	Double-dryer breathing type exhaust hood	1
3	axial-flow fan	1
4	Sealed pressure cylinder vat	1
5	15 type roots pump	1
6	Suction box	2
7	High consistence hydrapuler	1
8	High frequency vibrating screen	1
9	bleacher	2
10	380 double disc refiner	1
11	thruster	4
12	centrifugal screen	1
13	606 desander	Full sets
14	Two-phase flow pump-100	6
15	Two-phase flow pump-150	2
16	2880mm rewinding & drilling machine	1
17	Cutting machine	1
18	Electricity Operation cabinet	1
19	Frequency control cabinet	1
20	3T boiler ( burning gas / boiler / diesel)	1

Best Services:
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Turn-key project provider

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
