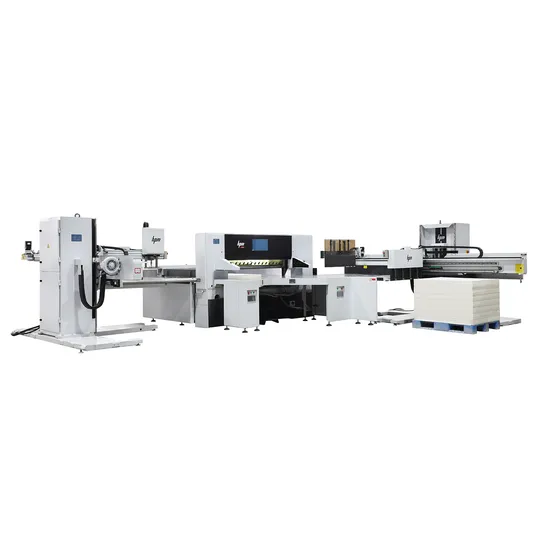

Hpm-L Cutting System (stack lift, Jogger, unloader)

Hpm-L Cutting System (stack lift, Jogger, unloader)

US$55,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CZ113; SJ1000 SQZK137S16; JXZ1050
Classification
Single-blade Cutter
Driven Type
Hydraulic
Type
Industrial Cutter
Blade Material
HSS
Computerized
Computerized
M15
15.6 Inch Touch Screen
Control Center
Inovance PLC
Backgauge Speed
18m/Min
Hydraulic System
Hydraulic System
Transport Package
Export Standard Wooden Case
Specification
92/115/130/137/168cm
Trademark
HPM
Origin
China
HS Code
8441100000
Production Capacity
1000 Unit/Year

Product Description


HPM S16Program Control Paper Cutter


Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen; Inovance PLC control.
2. Eight languages to choose.
3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Stepless speed adjustment function with latest technology,to make the cutting speed from 30 to 48 times within 1 minute,no need to change knife angle for different cutting material.
5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 18m/min.
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
7. With USB, transmit data, to convenient operator make programming and arrangement via PC.
8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
9. The backgauge is driven by a Inovance servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.
11. With automatic pushing paper function, the distance can be adjusted.
12. Adjustable time delay for knife activation, accurate and convenient.
13. Uses icons to show operational functions, which are simple and user friendly.
14. With full automatic cutting function. The backgauge and knife movements can be monitored on the screen.




Machine Performance
1.Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2.Clamp press paper stack through hydraulic system, the spring re-position.
3.Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4.Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5.One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.










Configuration Listing
No Name Brand, specification & model Origin of brand
1. Background LCD 16''Color touch Interface Taiwan
2. Control center Inovance PLC (CPU224) China
3. Backgauge position motor Inovance servo motor China
4. Pick-up Autonics Korea
5. Limit switch TE France
6. Guarding motor TE France
7. Air switch TE France
8. AC Contactor TE France
9. Miniature relay OMRON Japan
10. Switching power supply TE France
11. Power switch Moeller Germany
12. Ball screw High accurate Taiwan
13. Linear guider High accurate double linear guides Taiwan
14. Hydraulic system Hydraulic system Italy
15. Bearing NSK Japan
16. Work Table Slotless and plated chromium work table China
17 HSS knife Kanefusa Japan
