Moving Touch Control Cleaning Washing Marking Machine Car Parts

Moving Touch Control Cleaning Washing Marking Machine Car Parts

US$4,500.00-14,500.00 1 Set (MOQ)

Basic Info.

Model NO.
CKD-PLMN-20/30/50/60/100/120, V21.09
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Average Lead Time
3-5 Work Days After Payment
Computer
Optional
Funtion
Marking, Engraving, Cutting
Application Material
Metal and Some Non-Metal
Laser Source
Optional: 20/30/50W, Q-Switched or Mopa
Marking Scope
Optional: 100*100/150*150/200*200mm
Control Board
Bjjcz Original Control Board
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Trademark
CKD LASER
Origin
Shenzhen, China
HS Code
8456110090
Production Capacity
200 Set/Month

Product Description

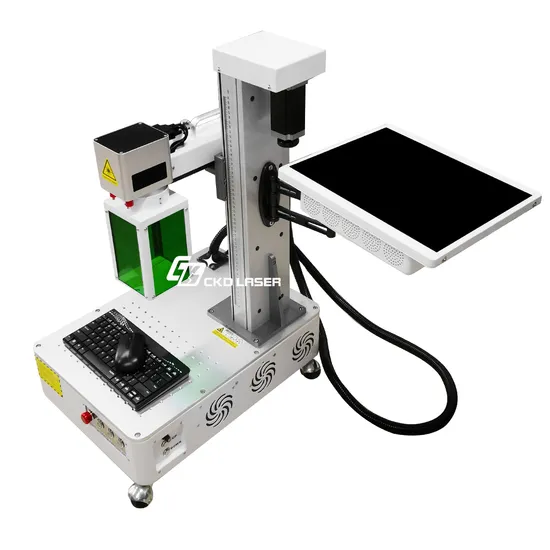

CKD-PLMD V21.09 is a super multi-function fiber laser marking machine, which can both moving and static work, including for marking, cleaning, engraving and cutting.
It's portable, e-focus, easy moving, with touch controller on machine, eye protective and high efficiency.
Users can easily put the marking head on material, then press down the trigger to shot laser to mark or clean.
CKD-PLMD V21.09 can be applied for any place, mark any content at any time. It mkes that possible to mark logo on huge material, such as car frame, big equipment, and any un-touchable location of a material that can not be separated to place on a printing machine.
Users can freely mark series number, QR code, bar code, vector figure or bit map photo, this machine support automatically number jumping with just once set.
This laser machine can mark metal, plastic and any other hard material with dark color.
You can push this small machine to your ideal work place conveniently.
Touch control helps users greatly improve efficiency. Touch control and never lost functions of marking software of EzCad2.
It doesn't need adjust focus before marking on kinds of material, directly touch the focus holder on the material to get a nice marking effect.
CKD-PLMD V21.09 has solved the problem of eye safety that has puzzled users for a long time when moving work with laser. With this machine, you don't need to wear additional laser protective goggle.
We won't let you waste resource if you use CKD-PLMD V21.09, it can easily become a standard laser marking machine at any time.
By pressing down the UP / DOWN button to make the three red dots to overlap, then get right focus easily, and the focus speed is adjustable.
Compared the old version moving marking machine, CKD-PLMD- V2109 can bring you more convenience:

CKD-PLMD V21.09 Big old version
Size Small, portable Big, heavy
Focus holder Precise eyes protective Simple frame
Control Both touch control and normal control Without touch control
Flexibility High Normal
Moving scan scope 100*100mm 70*70mm
Static scan scope 100*100mm, can expand to be bigger 100*100mm, can expand to be bigger
Operation Easy calibration when installing the focus holder back after static marking Not easy calibration when installing the focus holder back after static marking
Laser power 20/30/50/60/100/120W 20/30/50/60/100/120W
Focus Moving work: no need focus adjustment and precisely.
Static work: E-focus
Moving work: no need focus adjustment and need a slight calibration after longer using.
Static work: Manual

Focus holders' comparison:
Configuration of CKD-PLMD V21.09:
CKD-PLMD-20 CKD-PLMD-30 CKD-PLMD-50 CKD-PLMD-60 CKD-PLMD-100 CKD-PLMD-120
Laser source Fiber laser, Q-switched or MOPA Fiber laser, MOPA
Laser power 20W 30W 50W 60W 100W 120W
Focus Focus holder + E-focus
Focus holder Optional: with acrylic or laser protective plate (OD4+, 190-450 & 850-1600nm)
Scan scope 100*100mm
Expand scope when static work 150*150/200*200mm 150*150/200*200/300*300mm
Dimension 1/4: 63*48*35cm
2/4:48*42*19cm
3/4:76*27*27cm
4/4:30*22*22cm
1/4: 80*65*58cm
2/4:48*42*19cm
3/4:76*27*27cm
4/4:30*22*22cm
Weight 50Kg (by cartons) 81 Kg(wooden box + carton)
