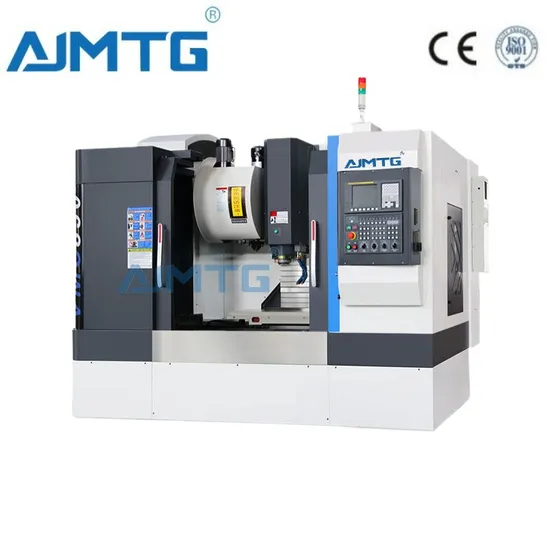

Vertical Machining Center with 700X420 Worktable Size

Product Description

Welcome to Nantong AJ Industry Limited! Explore our top factory with a 700X420 Worktable Vertical Machining Center. Send inquiries and visit us today!
Vertical Machining Center with 700X420 Worktable Size
Explore our Vertical Machining Center with a 700X420 worktable size for precision CNC milling. Ideal for various machining tasks.
Introducing the VMC640 with a 700x450x500mm worktable travel, ideal for precision machining tasks. Upgrade your workshop with this efficient CNC milling machine from Nantong AJ Industry Limited.
Product Description:
Specifications:
Spindle: BT40 10000rpm or 12000rpm (Taiwan make)
Travel: 900x600x700mm
Roller guideways: width 35/45/45mm (brand: Hiwin/PMI)
Hiwin ballscrew: diameter 40mm, C3 class with lock nuts
ATC: brand OKADA of 24 tools side mounted (armless type)
Chain type chip conveyor
Main Configuration & Accessories:
Resin sand casting, Meehanite HT-300
X, Y, Z rails with stainless steel telescopic cover
Roller type linear guideway from Taiwan
Ball lead screw from Taiwan
Standard belt-driven spindle (optional for direct driven spindle)
Taiwan pneumatic cylinder
Taiwan ATC (umbrella and disc type available)
Import bearings for leadscrews
Import coupling
Headstock Nitrogen balance system as option
Full enclosed cover
Rigid tapping
Spindle center ring blast
Work lamp
Pilot lamp
USB and Internet interface
Manual pulse generator (MPG)
Centralized automatic lubrication system
Cooling system
Heat exchanger for electrical cabinet
Leveling blocks & bolts
Toolbox and tools
CNC controller: KND, GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc
Standard Accessories:
All machines and standard accessories supplied by Nantong AJ Industry Limited except couplings, cables, electric panel, CNC system, motors, auxiliary panel, and transformer (motor housing supplied by Nantong AJ Industry Limited).

Fanuc 0i TF control system

Taiwan Spindle: 8000rpm

X/Y/Z axes: Fanuc servo drive motor

Main motor: Fanuc spindle motor

24 tools Umbrella type

USB for information transfer

Rough cutting of thread

Full closed cover

Automatic lubrication

Coolant system,

Work lamp,

Tri-color indication lamp

Air gun

Heat exchanger in cabinet

3-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from taiwan Hiwin

Enhance your Vertical Machining Center with optional accessories for increased efficiency and versatility.

Automatic chip conveyor & chip bucket (Chain type)

Spindle direct driven, speed 12000 rpm

Spindle center water spray

Air conditioner for electricity cabinet

Automatic chip conveyor & chip bucket (Screw type)

Spindle oil cooling

Nitrogen balance cylinder

4th Axis or 5th Axis

Export Certificate for Nantong AJ Industry's Vertical Machining Center with 700X420 Worktable Size. Ideal for CNC milling needs.
