4500lbs 4X4 12V Electric Winch with Wire Rope
| US$85.00-115.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
X4500L
Pull Direction
Forward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Brand
Zhme
Applicable Environment
off-Road
Certification
CE, SGS
Pulling
4500 Lbs
Transport Package
1 Winch/ CTN, 50 Ctns/ Pallet
Specification
N. W. 12kg
Trademark
ZHME
Origin
Zhejiang, China
HS Code
84253190
Production Capacity
10000 PCS Per Year
Packaging & Delivery
Package Size
48.00cm * 25.00cm * 22.00cm
Package Gross Weight
12.000kg
Product Description
4500lbs utv winch with long drum| Specification | |||||
| Rated line pull: | 4500Lbs (2041kgs) single line | ||||
| Motor: | Permanent magnetic motor 1.8hp /1.3kw,12V DC | ||||
| Gear Train: | 3 stage planetary | ||||
| Gear ratio: | 198:1 | ||||
| Clutch: | Sliding Ring gear | ||||
| Braking action: | Automatic in the drum | ||||

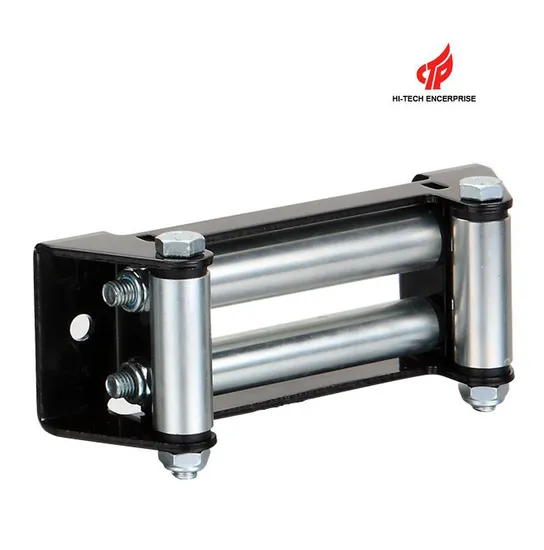

| Fairlead: | Roller fairlead for wire rope | ||||
| Wire rope: | 6.0mm ×10m | ||||
| Drum size: | 50mm×119.5mm | ||||
| Dimensions: | 391mm×114mm×120mm | ||||
| Mounting bolt pattern: | 165mm×76mm | ||||
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) | ||||
| N.W: | 26lbs (12kgs) | ||||
| Packing: | 480mmx250mmx220mm(800pcs per 20' container) | ||||
| Line speed and motor current (first layer) | |||||
| Line pull | Lbs | 0 | 1000 | 3000 | 4500 |
| Kgs | 0 | 454 | 1360 | 2041 | |
| Line speed | FPM | 16 | 10.5 | 7.2 | 3.9 |
| MPM | 4.9 | 3.2 | 2.2 | 1.2 | |
| Motor current | Amps | 17 | 70 | 135 | 210 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 4500 | 3625 | 3010 | 2596 |
| Kgs | 2041 | 1648 | 1368 | 1180 | |
| Cable capacity per layer | Ft. | 12.5 | 26.9 | 43.3 | 49 |
| M | 3.8 | 8.2 | 13.2 | 15 | |
