Nt40 Spindle Universal Vertical Milling Machine for Precision Machining

Product Description

Discover the unparalleled precision of our 5M Vertical Metal Turret Milling Machine, a pinnacle in universal milling technology crafted in China. At Dongguan Poleda Precision Machinery Co., Ltd., we pride ourselves on being the most professional in the industry. For us, excellence isn't a destination; it's a continuous journey-always striving for better. Experience the superior craftsmanship of the 5M Vertical Metal Turret Milling Machine, designed for versatility and precision.
Dongguan Poleda Precision Machinery Co., Ltd. presents the China Universal Milling Machine. We stand as the epitome of professionalism in the milling machine industry.
At Dongguan Poleda Precision Machinery Co., Ltd., we believe in relentless improvement. For us, there is no best, only an ever-improving standard of excellence.
Product Description
Product Parameters
Product Introduction

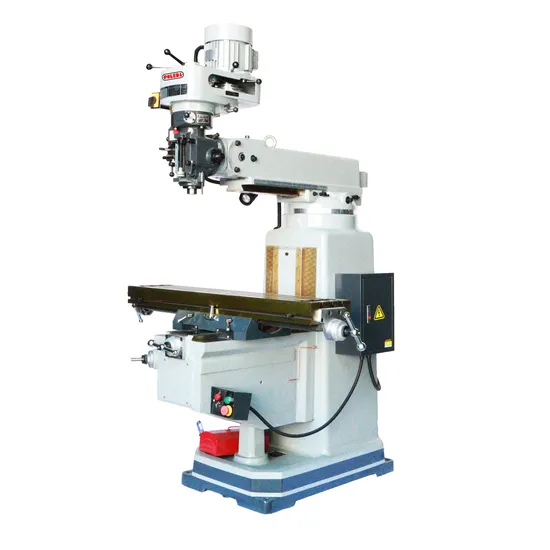

The Turret Milling Machine, alternatively known as the Rocker Arm Milling Machine or Universal Milling Machine, boasts a compact structure, small footprint, and exceptional flexibility. The milling head offers versatile movement, including a 90-degree rotation to either side and a 45-degree front and back rotation, while the rocker arm extends and allows for a full 360-degree rotation in the horizontal plane. These features considerably expand the effective working range of the machine.
Makeup
Crafted from high-grade cast iron, the body of the Universal Radial Milling Machine ensures high precision and longevity, thanks to an artificial aging treatment. The lifting platform incorporates rectangular guide rails with numerous contact surfaces and rigid feet. Following high-frequency treatment and fine grinding, the slides are plastinated to deliver exceptional motion accuracy and extended life. The spindle, made from chrome-molybdenum alloy and equipped with precision angular contact bearings, undergoes tempering and fine grinding to offer robust cutting force and high precision.
Use
The Turret Milling Machine is a versatile, lightweight metal cutting machine with both vertical and horizontal milling capabilities. It can mill flat, inclined, grooved, and spline surfaces of medium and small parts. This machine finds extensive application in industries such as machining, mold-making, instrumentation, and more.
Turret Milling Machine Mechanical Characteristics
Constructed with Mihanna cast iron, the casting offers superior rigidity, deformation resistance, and excellent stability.
The main spindle, made from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding, combined with precision bearings, ensuring strong cutting force and exceptional precision.
The milling head gearbox, also made of cast iron, provides excellent rigidity, minimal deformation, heavier gravity, and more precise cutting, enhancing the durability of the milling head.
The three-axis screw features screw caps made from advanced phosphor bronze, offering wear resistance and long service life.
After high-wave heat treatment, the XY-axis slide boasts good wear resistance and longer service life. The XY-axis interface, fitted with imported wear-resistant plates, ensures easy operation, low wear rate, and durability.
Equipped with a sophisticated lubrication system, the machine ensures uniform oil distribution across all points, guaranteeing smooth slide operation.
This machine is 100 kg heavier than comparable models, enhancing its stability and performance.
Powered by a robust 5hp motor and equipped with a high-rigidity, precision NT40 spindle, this machine is ideal for handling large parts and heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
