Beiene Smart CNC Busbar Busduct Connection Row Punching and Cutting Machine
| US$40,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EMAC-BDM-SP
Numerical Control
CNC/MNC
Certification
CE, ISO 9001, MD
Condition
New
Weight
2200kg
Norminal Force
200 Kn
Max. Sheet Length
6000 mm
Max. Sheet Width
120~140 Customizable
Max Hydraulic Power
31.5 MPa
Processing Thickness
3-4.5mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Size: 2330*1660
Trademark
BEIENE
Origin
Qingdao, China
Production Capacity
200 Sets Per Month
Packaging & Delivery
Package Size
233.00cm * 166.00cm * 170.00cm
Package Gross Weight
2200.000kg
Product Description

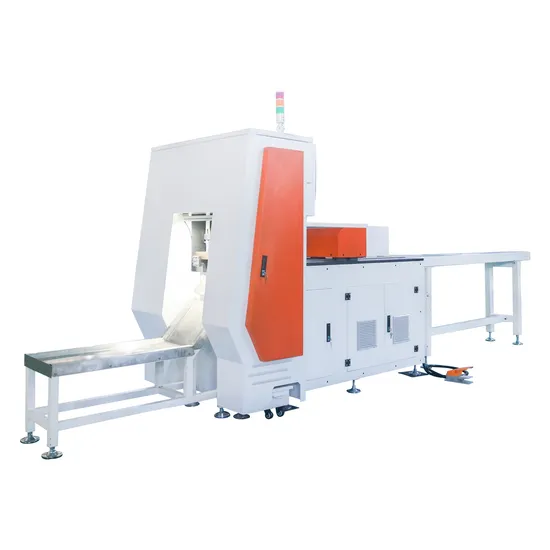

CNC Busbar Duct Connection Row Punching and Cutting MachineAdvantages:
1.This product is mainly used for making busbar connection slot connected row, and it is to automate busbar connection line of punching, stretching and shearing with high production.
2. Working Unit: Hydraulic drive, stable and reliable.
3.Touch Screen: Human-computer interface, the operation is simple and demonstrate real-time the operation status of the program, the screen can show the alarm information of the machine, and it set the basic die parameters and control the machine operation.
4.The machine adopts high accurate ball screw transmission and straight guide to guarantee high precision and fast efficiency.
5.The imported component is world-famous, with long service and good quality.
Main Technical Parameters:
| Description | Unit | Parameter | |
| Nominal Force | Punching Unit | KN | 200 |
| Stretching Unit | 200 | ||
| Shearing Unit | 200 | ||
| Location Speed of X-axis | m/min | 30 | |
| Max Stroke of X-axis | mm | 1200 | |
| Work Stroke | Punching Unit | mm | 15 |
| Shearing Unit | 20 | ||
| Stretching Unit | 30 | ||
| Pitch Control Accuracy | mm/m | < ±0.1 | |
| Beat Frequency | Punching Unit | Time/min | 50 |
| Shearing Unit | 30 | ||
| Stretching Unit | 25 | ||
| Processing Profile | Length | mm | ≤6000 |
| Width | 120-140 (customizable) | ||
| Thickness | 3-4.5 (customizable) | ||
| Host Area (L×W) | mm | 2330 × 1660 | |
| Max Hydraulic Press | MPa | 31.5 | |
| Total Power | KW | 6 | |
| Total Weight | KG | 2200 | |
