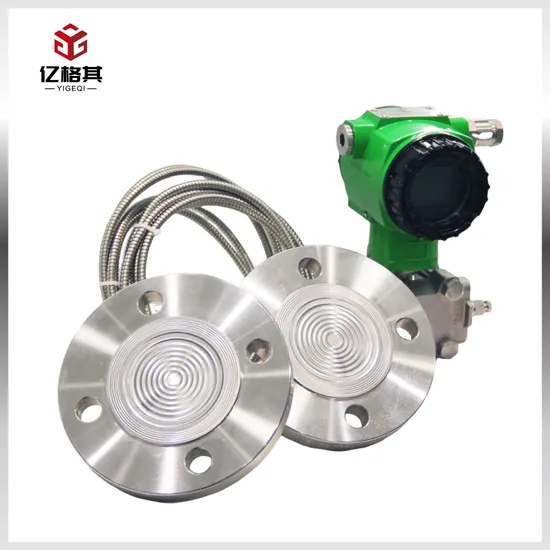

Level Measurement Differential Pressure Transmitter Flange Connection with Capillary

Level Measurement Differential Pressure Transmitter Flange Connection with Capillary

US$469.00-698.00 1 Piece (MOQ)

Basic Info.

Model NO.
YGQ7961D/7119
Range
0-15m
Measurement Accuracy
±3mm
Accuracy
0.1%
Kind
Liquid Level Transmitter
Structure
All in One
Warranty
3 Year
Certification
CE
Material
SS304
Filling Fluid
DC200 DC704 DC705 Low Temperature Oil Xlt
IP Rating
IP68
Output Signal
4-20mA, Hart (Two-Wire System)
Power Supply
External Power Supply 24V DC
Transport Package
Carton
Specification
500*500*300mm
Trademark
YIGEQI
Origin
China
HS Code
9026201090
Production Capacity
50000pieces/Year

Product Description

Product Introduction Yigeqi's level transmitter integrates Yigeqi's pressure instrument and direct-mount seals in one model. The fully welded system makes reliability second to none in its class.
Wireless configuration provides new data access
Connect to almost any process pipeline with a comprehensive range of process connections, fillings, direct-mount or capillary connections and materials
Quantify and optimize overall system performance with QZ options
The 7119 sealing system consists of a pressure transmitter, one or two seals, fillings, and direct-mount or capillary connections. The sealing system reliably measures process pressure and prevents process media from contacting the transmitter diaphragm
The 7119 sealing system direct-mount gauge or absolute pressure sealing system can be used for open or atmospheric tank applications, with a variety of process connections, suitable for flow, level, density and pressure measurement in high and low temperature, high viscosity, easy to crystallize, highly corrosive and vacuum environments.

Instrument model YGQ7961D/7119
Instrument category Double flange liquid level transmitter
Process Connection Flanges, threads, and sanitary types
2-inch/DN50/50A
3-inch/DN80/80A
Range Range selectable within 0-15m
Liquid receiving material 316L stainless steel
Hastelloy C-276
TA tantalum, NI nickel, T titanium, etc
Accuracy ±0.1%FS
Filling fluid DC200 DC704 DC705
Low temperature oil XLT
Fluorine oil
Product Advantages
The following situations should consider using a transmitter/diaphragm seal system:
Process temperature is outside the operating range of the transmitter
Process is corrosive or requires specific structure or materials
Process contains suspended particles or is sticky and easily blocks the connection
Application requires flushing ring sanitary connection for easy cleaning in place/sterilization in place (CIP/SIP) service
Requires easy cleaning of the connection location to avoid contamination between batches
Flexible application:
Flange, thread and sanitary process connection
Complies with industrial standards such as EN 1092-1, ANSIASME B16.5, JISB2238, ANSIASME, B1.20.1, EN 10226-1, GOST 12815-80. China Chemical Industry Standards HG20615 and HG20592, and 3-A standards 74-03 Various filling fluids, including low temperature, high temperature, sanitary and food grade
Three different capillary diameters to improve accuracy and response time
Reliable and durable seal design:
The base has the same corrugation as the diaphragm, which can protect the diaphragm and reduce the amount of oil filling
The concave diaphragm design reduces the risk of damage during loading and unloading. Detailed Photos

Company Profile

FAQ Q:What kind of product do you supply?
Our products include pressure/differential pressure transmitters, temperature transmitters, liquid level transmitters, radar level meters, dissolved oxygen analyzers and other instruments.
Q:What is your product and technology advantages?
We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q:Where is your factory location?
Our factory located in Zibo, Shandong province, China, which is top three instrument production area. And take an area of more than 2500 square meters.
Q:Can we visit your factory?
You are always welcome to our factory at any time at your convenience.
Q: What is the warranty of your product?
Our product warranty is 18 months from the shipping date, but we provide lifetime maintenance.
Q:How long is your delivery date?
For peak season is 4 weeks and 2 weeks for offseason, but no matter peak or off season we will try our best to meet your requirements.
Q: How is your after sales services?
Our products quality enjoy very good quality reputation and has almost no warranty caused by product itself, but we still provide 24/7 online
services for our customer for any installation, commision, running or other problems.
