Mobile Self Propelled Scissor Lift Hydraulic Scissor Lift Platform Electric Model for Sale
Basic Info.
Model NO.
HTLP0.3
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Size of Work Table
2400*1170
Load
320kg
Lifting Speed
3-5m/Min
Transport Package
Packing in Wooden Case
Specification
2600*1170*1580
Origin
China
HS Code
8428909090
Production Capacity
300pieces/Year
Packaging & Delivery
Package Size
260.00cm * 117.00cm * 158.00cm
Package Gross Weight
2000.000kg
Product Description

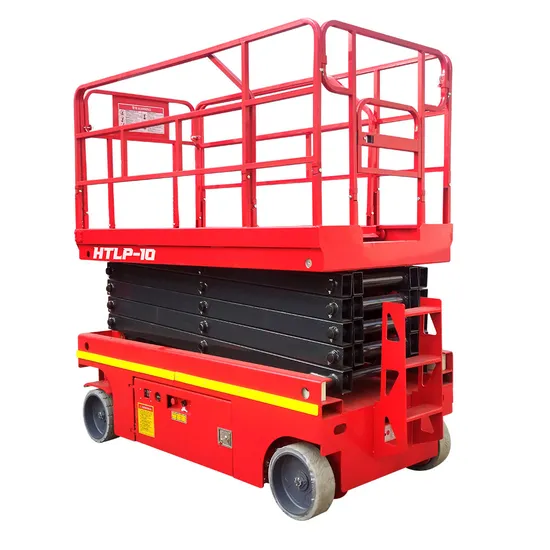

Hydraulic Control Scissor Lift
Product introduction: The fully automatic self-propelled lifting platform is a self-propelled aerial work platform. It has the function of automatic walking. It can walk at a slow speed under different working conditions. , steering, etc. Main features: The user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to drive to other working places on the platform. The equipment itself has the functions of walking and steering, without manual traction or external power supply. It is flexible and convenient to move, making aerial work convenient and fast, and it is an ideal aerial work equipment for modern enterprise production. Use place: suitable for a wide range of operations such as airport terminals, stations, wharfs, shopping malls, stadiums, residential properties, factories and mines.
| Model | HTLP0.3-4 | HTLP0.3-6 | HTLP0.3-8 | HTLP0.3-10 | HTLP0.3-12 | HTLP0.3-14 |
| Safe working load | 320kg | 320kg | 320kg | 320kg | 320kg | 320kg |
| Safe working load of extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max number of worker | 6m | 8m | 10m | 12m | 14m | 16m |
| Max platform height | 4m | 6m | 8m | 10m | 12m | 14m |
| Overall length | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 3200mm |
| Overall width | 1170mm | 1170mm | 1170mm | 1170mm | 1170mm | 1500mm |
| Overall height | 2160mm | 2280mm | 2400mm | 2520mm | 2640mm | 2210mm |
| Working platform size | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2800* 1400mm |
| Platform extension size | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m |
| Min ground clearance | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | |
| Min turning radius | 2.20m | 2.20m | 2.20m | 2.20m | 2.20m | 2.20m |
| Lifting motor/driving motor | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW |
| Machine travel speed | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H |
| Battery | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH |
| Machine weight | 2000kg | 2200kg | 2400kg | 2600kg | 2800kg | 3500kg |
