Rock Hammer Mill for Gold Crushing
| US$1,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
200*500
Drive
Electric
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
<100MPA
Crushing Degree
Fine Grinding Machine
Finished Surface
Gear Process
Certification
CE, ISO, GOST, SONCAP, CCC, API, SGS
Condition
New
Color
Iron Grey
Feeding Size
<50mm
Discharge Size
<1.8mm
Power
Motor or Dessel at User Option
Flowsheet Design
Supply
Sample Test
Supply
Installation
Supply
Visit Factory
Warmly Welcome
Transport Package
Standard Export Packing
Specification
depent on model
Trademark
Gandong
Origin
Jiangxi China
HS Code
84741000
Production Capacity
500PCS/Year
Product Description
Descriptions

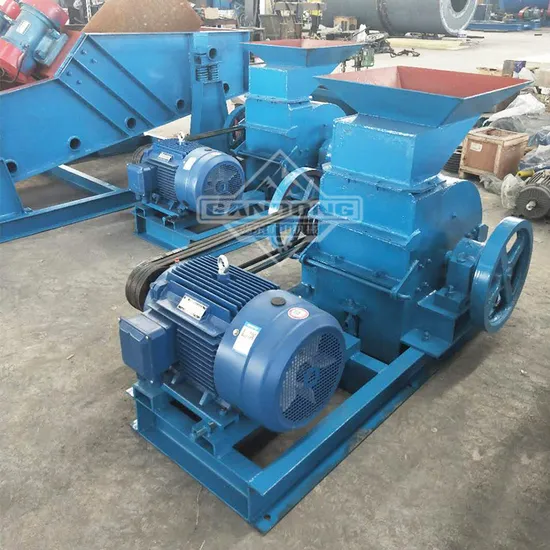

The Rock hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and materials, and the hammer crusher (hammer mill) features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher (hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
Technical Specifications
| Model | Capacity (T/h) | Feeding Size (mm) | Discharge Size (mm) | Power at user option | |
| Motor (Kw) | Diesel | ||||
| 200×500 | 1-2 | ≤50 | ≤1.8 | 15-18 | 24 |
| 300×500 | 3-6 | ≤50 | ≤1.8 | 18-22 | 30 |
| 400×600 | 5-10 | ≤50 | ≤1.8 | 25-30 | 45 |
if you are interested in our products, please send me message in below blank, then click"send", we will reply within 24hours,or call us. thanks your time.
