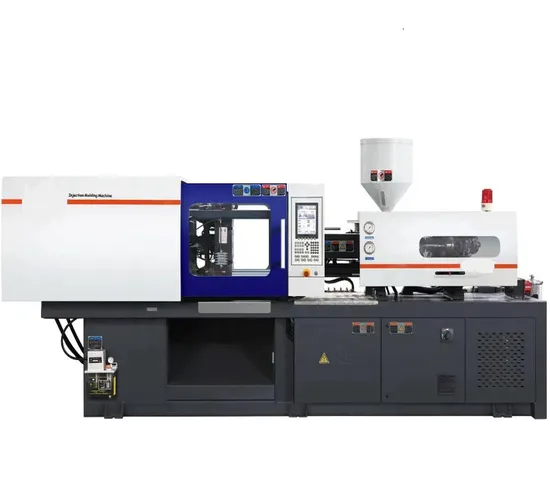

Pet Preform Injection Molding Machine/Plastic Injection Molding Machines

Product Description

Product Application This Horizontal type PVC plastic injection molding machine reduces and improves the production machine, which has little volume and strong removability, injection molding machine is suitable for classroom teaching and the making of the small simple. This injection molding machine contains opening mould and closing mould parts, melting plastic injection parts, machine body, heating system, control system, and charging device.
Technical parameter

Specifation	Model No.	Unit	20T	25T	40T	60T
Injection unit	Screw diameter	mm	22	22	25	28
	Injection pressure	kg/cm²	2170	2170	1960	2170
	Injection quantity	G/OZ	40/1.4	40/1.4	64/2.2	80/2.8
	Screw stroke	mm	110	110	110	140
	Nozzle stroke	mm	150	150	200	200
Clamp Unit	Clamping Force	Tons	20	25	40	60
	Platen size	mm	380*290	380*290	430*430	470*470
	Tie-bars spacing	mm	250*200	250*200	280*280	310*310
	Mini mold thickness	mm	100/40	130/100	120/160	160/200
	Mold opening stroke	mm	215	215	215	250
	Max mold opening distance	mm	255/315	315/345	340/380	410/450
Power Unit	Max hydraulic pressure	kg/cm²	140	140	140	140
	Motor power	KW	4(5HP)	4(5HP)	4(5HP)	7.5(10HP)
	Total power consumption	KW	6	6	6.4	11.5
Other	Machine weight	kg	1000	1000	1500	2000
	Machine dimensions	mm	2020×600×1400		2400×700×1500	2600×700×1500

Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Reduces and improves the production machine, which has little volume and strong removability.
3) Suitable for classroom teaching and the making of the small simple.
4) Has simple structure, easy operation, and has no noisy and no pollution.
5) Adopt 220V voltage, can be used in any place with electric, and will not restrict by industrial electricity.
Detailed Images
Die head:
here specifies the shape of the plastic finished product, you can add different die heads, after the plastic is heated and melted, under the action of the back seat pressure, the plastic is filled with the die head, to be cooled and formed, you can get the desired plastic products

Njection nozzle
From here thIe molten plastic raw material is injected into the die head, so that the plastic raw material is formed in the mold of the die head to get the desired shape of the plastic product

The sample
The sample shape and size can be customized according to the die head
