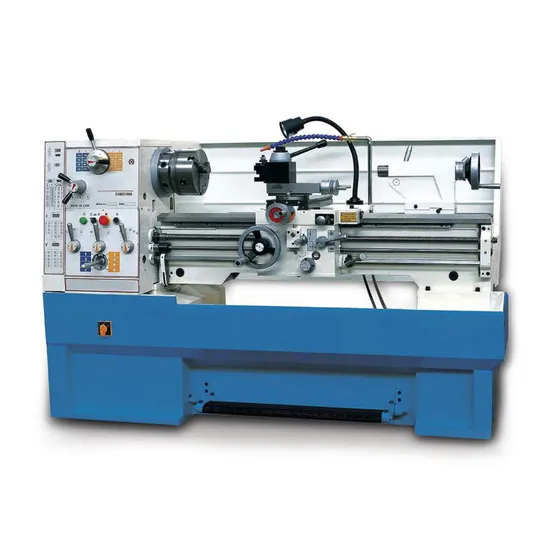

Precision Universal Heavy Duty Manual Lathe Cm6241 Cm6241V Horizontal Lathe Machine

Precision Universal Heavy Duty Manual Lathe Cm6241 Cm6241V Horizontal Lathe Machine

US$6,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
CM6241 CM6241V
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Name
Lathe Machine
Color
Customized Option
Keyword
Lathe C6241
Production Capacity
30 Set/Month

Product Description

Precision Universal Heavy Duty Manual Lathe CM6241 CM6241V Horizontal Lathe Machine # 2 Axis digital readout system (optional)# Quick change toolpost with 5 holders (optional)# Concertina leadscrew cover (optional)# Gear drive headstock for quick change of spindle speeds# Precision V-beds are hardened and ground, incorporating a rigid webbed casting# Foot operated spindle brake with safety cut out switch# Change gears for metric and imperial thread cutting# Adjustable taper roller bearings support the spindle# Inching button is incorporated on the control panel for convenient spindle speed selection# Enclosed quick action gearbox for thread cutting and auto feeding# Powered longitudinal and cross feeds# D1-6 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard# Removable gap bed-way for larger diameter jobs
technical parameter Specification Models
CM6241×1000/1500 CM6241V×1000/1500
Processing range Capacity
Maximum workpiece turning diameter on the bed Swing over bed 410mm(16")
Maximum workpiece turning diameter on the carriage Swing over cross slide 255mm(10")
Maximum turning diameter in the saddle groove Swing in gap diameter 580mm(23")
Active length of the saddle in front of the faceplate Length of gap 190mm(7-1/2")
Two top center distance Admits between 1000mm(40")/1500mm(60″)
Spindle center height Center height 205(8″)
Bed width Width of bed 250(10")
Spindle HEADSTOCK
Spindle end Spindle nose D1-6
Spindle through hole diameter Spindle bore 52mm(2")
Spindle bore taper Taper of spindle bore No.6Morse
Spindle speed range Range of spindle speed 16 changes 45-1800r/min 30-550r/min or 550-3000r/min
Feed and thread FEEDS AND THREADS
Small pallet maximum longitudinal stroke Compound rest travel 140mm(5-1/2")
Middle carriage maximum lateral travel Cross slide travel 210mm(8-1/4")
Large screw specifications Lead screw thread 4T.P.I.
The maximum size of the cutter bar (width × height) Max.Section of tool (W×H) 20×20mm(13/16")
Longitudinal feed range Longitudinal feeds range 0.05-1.7mm/rev(0.002"-0.067"/rev)
Horizontal feed range Cross feeds range 0.025-0.85mm(0.001"-0.0335"/rev)
Metric thread range Threads metric pitches 39kinds 0.2-14mm
Inch thread range Threads imperial pitches 45kinds 2-72T.P.I
Diameter thread specification Threads diametral pitches 21kinds 8-44D.P.
Modular thread specification Threads module pitches 18kinds 0.3-3.5M.P.
Tailstock TAILSTOCK
Tailstock sleeve diameter Quill diameter 50mm(2")
Tailstock sleeve stroke Quill travel 120mm(4-3/4")
Tail sleeve inner hole taper Quill taper No.4 Morse
Lateral adjustment Cross adjustment ±13mm(±1/2")
Motor MOTOR
main motor power Main motor power 2.2/3.3kW(3/4.5HP)3PH
Cooling pump power Coolant pump power 0.1KW(1/8HP),3PH
Dimensions and weight DIMENSION AND WEIGHT
Dimensions (length × width × height) Overall dimension(L×W×H) 194×85×132cm/244×85×132cm
Box size (length × width × height) Packing size(L×W×H) 206×90×164cm/256×90×164cm
Net weight / gross weight Net weight/Gross weight 1160kg/1350kg 1340 kg /1565 kg
