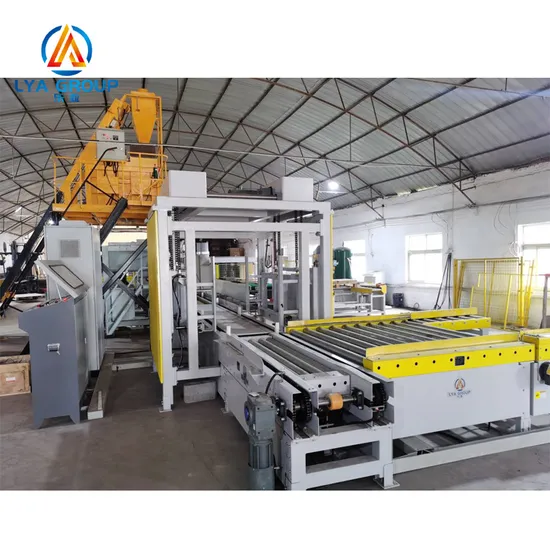

Fully Automatic Precast Concrete Kerb Stone Dosing System Paver Block Artificial Stone Making Wet Casting Machine Veneer Stone Production Line Price

Fully Automatic Precast Concrete Kerb Stone Dosing System Paver Block Artificial Stone Making Wet Casting Machine Veneer Stone Production Line Price

US$59,800.00-189,000.00 1 set (MOQ)

Basic Info.

Model NO.
LYA-B1/B2
Type
Full Auto Wet Casting System
Shotcrete Type
Wet
Productivity
240m²/h
Feeding Height
1400mm
Certification
CE, SGS
Condition
New
Color
as Your Request
Delivery Date
15-20 Days After Received Your Deposit
Materials
Clay/Cement/Stone Powder
Working Staff
1-2 Person
Voltage
No Need Electricity
Moiding Cycle
25-30s
Transport Package
Plywood
Specification
1550*650*1300mm
Trademark
LYA
Origin
Henan, China
HS Code
8474809090
Production Capacity
1500-2000 PCS/Day

Packaging & Delivery

Package Size
10000.00cm * 2000.00cm * 2000.00cm
Package Gross Weight
1200.000kg

Product Description


Product description:
1.concrete dosing can be calculated kilograms,not by time;thus to keep the dosing in a more accurate way.
2.Pneumatic door switching design,not wasting any more concrete for each dosing.
3.Adopt the storage silo for saving the concrete from each dosing,can save up to 75kg each time.
4.It has vibration function assembled with the dosing part,after dosing the concrete on the molds then will start vibration .
5.Digital screen controller,with all dosing weight available by only setting up the button ,it is fully automatic mode.
6.Save 6-8 labors for the factory,and reduce the working strength of the labors.
Adopt the frequency motor,all size of raw material will not stuck at the mixing & dosing process.make sure machine parts will long lasting use and power saving.
Name
Model
 Specifications
 Power (kw)
Auto degree
 Capacity
Weight(KG)
Electricity required

Forklift
 LYA-3T
 Loading capacity:3000KG
Power type:Diesel drive
Max. Lift height:3500mm+
Engine output:36KW;
Fork hand adjust method:Manual;
Fork hand adjust range:1060mm/250+;
Max. Speed:20KM/H;
Max. Traction:17KN
 36
 Semi automatic
 3000KG
 3500
 --------

Auto unloading machine
 LYA130*80
 Size:2100*1400*2100mm

 5.5
 Fully automatic
 4-10S/Piece
 1260
 380-440V,
50/60HZ,
3Phases

Auto Spray Machine
 LYA80
 Size:1600*1500*1500mm

 2.2
 Fully automatic
 5-8 S/M2
 560
 380-440V,
50/60HZ,
3Phases

Auto Concrete forced Mixer
 HTX-JS
500

 Size:2200*1800*
2000mm


 25.6
 Fully automatic
 500L
 1500
 380-440V,
50/60HZ,
3Phases

Auto Dosing Machine
 HTX25*106-2
 Size:1900*1300*2500mm

 3*2
 Fully automatic
 3-6KG/S
 1380
 380-440V,
50/60HZ,
3Phases

Auto Stacking Machine
 HTX-150*80
 Size:2100*1400*2100mm
 5.5
 Fully automatic
 4-10S/Piece
 1500
 380-440V,
50/60HZ,
3Phases

Empty Pallet Belt conveyor
 HTX80*800
 Size:8000*1200*700mm
 4
 Fully automatic
 0.3-1M/S
 1300
 380-440V,
50/60HZ,
3Phases

Full Pallet Belt conveyor
 HTX80*600
 Size:6000*1200*700mm
 3
 Fully automatic
 0.3-1M/S
 1400
 380-440V,
50/60HZ,
3Phases

Auto Screen controller
 ZKA1
 Size:800*600*600mm
 --
 Digital screen
150

Pallet transfer machine
 HTX-80*50
 Size:
 4.5*2+3
 Fully automatic
 0.3-1M/S
 850
 380-440V,
50/60HZ,
3Phases
