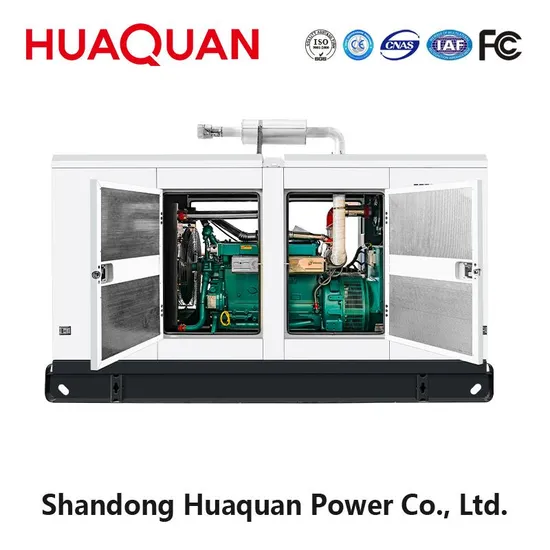

High-Performance 100kw Natural Gas Engine for Industrial Applications

Product Description

Product Parameters
Technical characteristics

Model	HQ100NF	HQ120NF	HQ150NF
Output power	100kW	120kW	150kW
Power factor	COSΦ=0.8(lagging)	COSΦ=0.8(lagging)	COSΦ=0.8(lagging)
Output voltage	400V/230V	400V/230V	400V/230V
Output current	180A	216A	270A
Rated frequency	50/60Hz	50/60Hz	50/60Hz
Rated speed	1500/1800rpm	1500/1800rpm	1500/1800rpm
Dimension	2300*750*1600(L*W*H mm)(reference)	2400*880*1600(L*W*H mm)(reference)	2600*950*1600(L*W*H mm)(reference)
Weight	1250kg(reference)	1500kg(reference)	2200kg(reference)
Engine brand	Weichai	Weichai	Weichai
Engine model	WP6D120E200NG	WP10D158E300NG	WP10D200E300NG
Start method	24V DC Electric start	24V DC Electric start	24V DC Electric start
Cooling method	Water cooling system	Water cooling system	Water cooling system
Protection class	IP22	IP22	IP22
Wiring mode	3-phase 4-wire Y-type	3-phase 4-wire Y-type	3-phase 4-wire Y-type
Insulation class	H Class	H Class	H Class

Company Profile
Shandong Huaquan Power Co., Ltd. is located in Shandong, China. It was established in 2010 with a registered capital of 70 million and more than 100 R & D personnel. It currently covers an area of more than 40,000 square meters. The main business is divided into three major sections: emergency equipment, energy storage power supply, and power engineering. The main products include energy storage power supply, diesel power stations, gas power stations, trailer power stations, container power stations, flood prevention emergency pumps, integrated generators, container transformation stations and so on. Adhering to the corporate mission of "making green energy all over the world", Huaquan Company has created three major brands including "HQ-POWER", "HUAQUAN" and "huaquan". At present, the company has developed into a powerful brand in the power industry, and its products are exported to more than 100 countries and regions. Detailed Photos
