5 Axis Double Column Machining Center Gantry Type Machining Center Gl4022

Product Description

Product Description

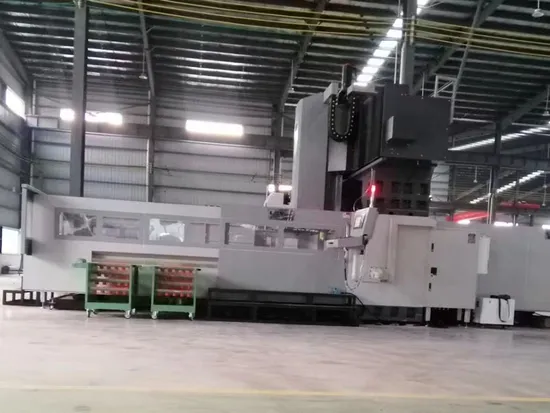

The 5 axis GL4022 is a high performance CNC double column machining center which has high precision and rigidity characteristics. The machine has very high strength, excellent rigidity and stability. All castings of the machine are secondary tempered to provide excellent rigidity to the fuselage. The gate bridge and base use integrated structural design to provide excellent stability for the machine. The machine also equips a high speed and precision spindle. The speed range of the spindle is up to 6000RPM and the maximum cutting feed speed is from 10 till 7000 RPM. The materials of the spindle can absorb vibration which can effectively avoid accuracy problems in the process of machining.

Main Features
High speed and precision spindle: 6000 RPM Overall rigidity is excellent Maximum cutting feed speed: 10 - 7000 RPM Good stability Excellent accuracy
Detailed Photos
Product Parameters

ITEM	MODELS	GL4022
WORKTABLE (WIDTH*LENGTH)	mm	4000*2000
MAX LOAD BEARING OF WORKTABLE	T	15
X/Y/Z AXIS TRAVEL	mm	4000/2200/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	240-1040
SPINDLE HOLE TAPER		TB50
SPINDLE SPEED RANGE	r/min	6000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	Optional
DISTANCE BETWEEN TOW COLUMNS	mm	2300
X/Y/Z RAPID FEED SPEED	m/min	12/12/15
MAX CUTTING FEED SPEED	m/min	10-7000
X/Y/Z POSITION ACCURACY	mm	±0.015/300
X/Y/Z RE-POSITION ACCURACY	mm	±0.01
MACHINE DIMENSION	mm	11000*3700*4700
MACHINE WEIGHT	T	38
POWER DEMAND	KVA	45
AIR PRESSURE	m ³mim	7

Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system
