UTP Cat5e/Computer Cable/ Data Cable/ Communication Cable/ LAN Cable Cat5e
| US$38.90 | 50 Bags (MOQ) |
Basic Info.
Model NO.
4x2x24awg
Interface Type
USB
Shape
Strip
Material
Copper
Pin
4Pin
Feature
Waterproof
Power Cable Type
Two-pin
Computer Cable Type
Data Line
Printer Cable Type
USB
Transport Package
305m Roll
Specification
4p8c
Trademark
hanli
Origin
Linan China
Production Capacity
500000box/Year
Product Description

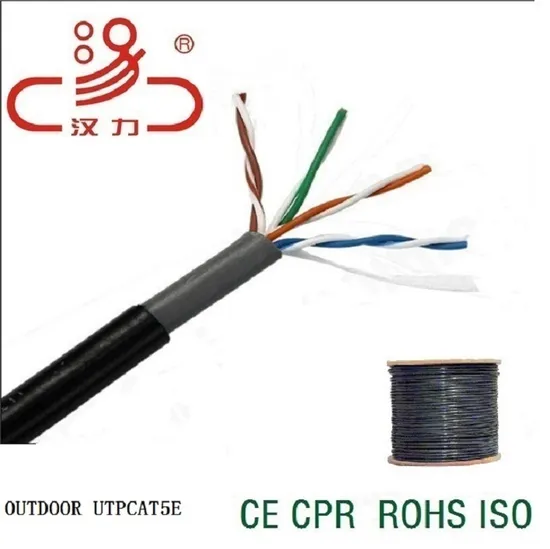

Outdoor double sheath UTP CAT5E| UTP CAT 5E PVC | ||||||
| Product Name/Code : UTP Cat 5E PVC | Performance | |||||
| Frequency | RL | Attenuation | NEXT | PSNEXT | ||
| Application | (MHz) | (dB) | (dB/100m) | |||
| 100 Base-T4 | min. | max | (dB) | |||
| 100 Base-TX | 0.722 | 22.60 | 1.82 | 67.00 | 64.00 | |
| 100VG - AnyLAN | 1.000 | 20.20 | 2.00 | 65.30 | 62.30 | |
| 1000 Base-T (Gigabit Ethernet) | 4.000 | 23.00 | 4.10 | 56.30 | 53.30 | |
| 155 Mbps ATM | 8.000 | 24.50 | 5.80 | 51.80 | 48.80 | |
| 622 Mbps AT | 10.00 | 25.00 | 6.50 | 50.30 | 47.30 | |
| Reference Standard | 16.00 | 25.00 | 8.20 | 47.30 | 44.30 | |
| EIA/TIA 568B & ISO/IEC 11801 | 20.00 | 25.00 | 9.30 | 45.80 | 42.80 | |
| Cable Construction | 25.00 | 24.30 | 10.4 | 44.30 | 41.30 | |
| Conductor | Solid Bare Copper | 31.25 | 23.60 | 11.70 | 42.90 | 39.90 |
| AWG | 24 | 62.50 | 21.50 | 17.00 | 38.40 | 35.40 |
| Conductor Diameter(mm) | 0.5 | 100.00 | 20.10 | 22.00 | 35.30 | 32.30 |
| Insulation | Solid PE | Frequency | ELFEXT | PSELFEXT | ACR | |
| Average Thickness(mm) | 0.217 | (MHz) | ||||
| Insulation Diameter(mm) | 0.95 | (dB) | (dB) | (dB) | ||
| 0.722 | 66.00 | 63.00 | 65.00 | |||
| Sheathing | PVC/PE | 1.000 | 63.8 | 60.8 | 63.30 | |
| Thickness(mm) | 1.1 | 4.000 | 51.7 | 48.7 | 52.20 | |
| Diameter(mm) | 5.20 | 8.000 | 45.7 | 42.7 | 46.00 | |
| 10.00 | 43.8 | 40.8 | 43.80 | |||
| Core Identification/Color Code | According to customer request | 16.00 | 39.7 | 36.7 | 39.10 | |
| Bending Radius | 6xOverall Diameter | 20.00 | 37.7 | 34.7 | 36.50 | |
| 25.00 | 35.8 | 32.8 | 33.90 | |||
| 31.25 | 33.9 | 30.9 | 31.20 | |||
| Fire Performance | 62.50 | 27.8 | 24.8 | 21.40 | ||
| Flame Propagation Test to IEC 60332-Part-1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3 (FRPVC) | 100.00 | 23.8 | 20.8 | 13.30 | ||
| Electrical Performance | ||||||
| Max.Conductor DC Resistance at 20 ºC(Ω/Km) | < 93.8 | |||||
| Operating Temperature( ºC ) | 70 | |||||
| Velocity of propagation | 68% | |||||
| Impedance(ohm) | 100 ±15 | |||||
Our Services
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
