Variable Speed Mini Metal Lathe High Precision Manual Metal Lathe

Product Description

Overview
Product Description

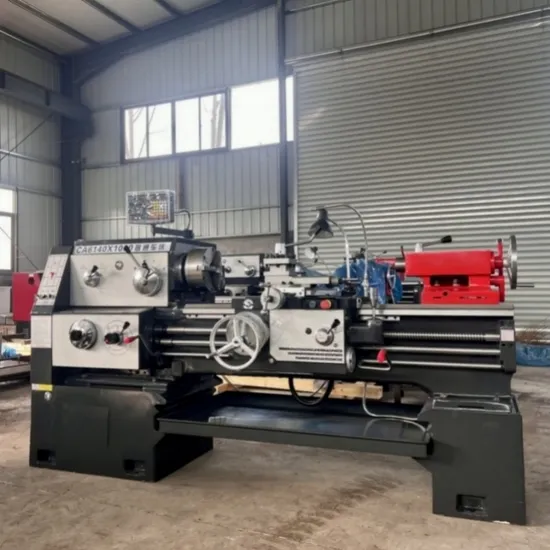

Main performance features of CA6140 lathe products:
1. The joint surfaces between the headstock and the bed, tailstock, and pallet of the 6140 ordinary lathe are manually scraped and polished, and the whole machine is strictly tested to effectively ensure the accuracy and stability of the machine tool.
2.The 6140 ordinary lathe adopts high-strength cast iron, with copper and chromium special materials added. The width of the bed rail is 400mm, and the quenching depth of the bed rail reaches 4mm, which effectively improves the wear resistance and stability of the machine tool.
3. The headstock lubrication of the 6140 ordinary lathe adopts a cycloidal pump for circulating forced lubrication. Aiming at the hot weather in the south, it ensures the cleanliness and heat dissipation characteristics of the headstock, and effectively extends the service life of bearings and gears.
4. The machine tool spindle adopts Wafangdian bearings, the spindle through hole is φ52mm, and the machine tool gears are precision ground, which effectively improves the gear hardness and reduces the noise of the machine tool.
5. The machine tool adopts domestic brand lead screws, and the nut adopts high-quality bronze alloy to ensure wear resistance and precision retention.
6. The machine tool adopts a four-station high-strength tool holder with a tool handle size of 25x25mm.
Product Parameters

Specification	CA6140	CA6150
Max. workpiece diameter on the bed	400mm	500mm
Max. workpiece diameter on tool holder	210mm	300mm
Max. workpiece length	1000mm	1000mm
Bed width	400mm	400mm
Spindle speed range	10-1400rpm	10-1400rpm
Feed quantity	64	64
Max. travel of the tailstock spindle	150mm	150mm
Tailstock spindle diameter	75mm	75mm
Main motor	7.5kw	7.5kw
Packaging size	2650*1000*1267mm	2700*1037*1312mm
Weight	2190	2260

Detailed Photos


Hot Sale Products

Packing and Delivery
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
