Downtown Use 20cbm Cylinder Filling Small 10ton Propane Gas Station
| US$15,000.00-24,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CLW5784
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Capacity
20ton
Tank Volume
40cbm
Design Pressure
17.1bar
Tank Material
Pressure Vessel Tank Material Q345r
Material Thickness
8mm to 12mm
Safety Relief Valve
1 Unit on Top
Water Sprinkler
1 Set in Circular Shape
Base
U Shape Steel
Pump & Motor
1", 2"
Pump Type
Vane Pump, Coro Flow
Pump Brand
Corken, Blackmer, Chinese Brand
Safety Return valve
1.5"
Pipeline
1 Whole Set
Filling Scales
1 Unit or 2 Unit
Filling Scales Type
Auto Stop, with Recording Keeping
Transport Package
Naked Pack
Specification
Small Station
Trademark
CLW
Origin
China
HS Code
7311009000
Production Capacity
300unit/Month
Product Description
Product DescriptionCylinder Car Refilling Tanker 10Ton 20Ton LPG Skid Filling Station
1. LPG Skid Station for cooking gas refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector.
Specifications Detail of the Truck
| Parameters of 40cbm LPG tank | ||
| Item | Parameters | |
Tank | Description of LPG tank | 40 CBM LPG storage tank |
| Overall dimensions (mm) | 9270*2428*3018 | |
| Diameter (mm) | 2300 | |
| Curb weight(kg) | 8630 | |
| Filling weight(kg) | 20000 | |
| Cylinder thickness (mm) | 12 | |
| Head thickness (mm) | 14 | |
| Design pressure | 1.77MPa | |
| Max working pressure | 1.61MPa | |
| Design temperature | ≤50ºC | |
| Filling medium | Liquid petroleum gas (propane) | |
| Corrosion allowance (mm) | 1.0 | |
| Volume (cbm) | 40 | |
| Thermal treatment | The entirety | |
| Filling capacity | 420~540kg/CBM | |
| Material of the tank | Q345R | |
| Hydraulic test pressure | 2.22 M Pa | |
| Gas tight test pressure | 1.77 M Pa | |
| Service time | 15 years | |
| Accessories list of lpg tank | |||
| Parts No | Size | Parts Name | Model No. |

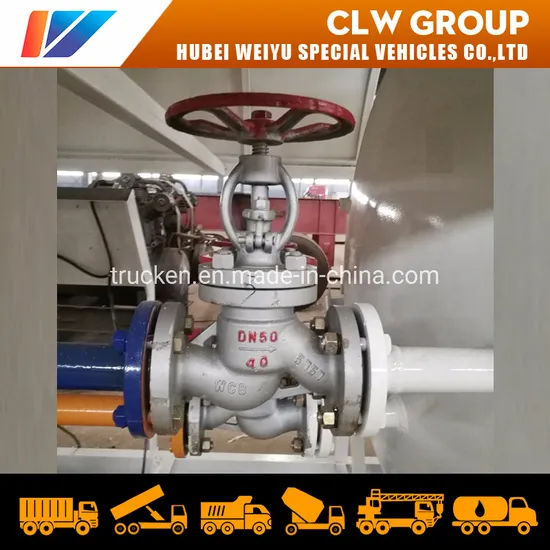

| a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 |
| b | DN50 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-80 |
| c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 |
| c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 |
| d | DN50 | Cut-off Valve for Liquid Inlet | J41N-2.5-50 |
| i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 |
| f1 / f2 | DN25 | Magnetic Level Gauge | J41N-2.5-25 |
| e | M33*2 | Thermometer | WTQ-280 |
| g | M20*1.5 | Pressure Meter | Y-100T |
| / | / | Ball floating Level Meter | HG21584-95 |
| h | DN80 | Safety Valve | A42F-25 |
| j | DN450 | Manhole | HG20592-WN |
| Remark | The f1, f2 is the Magnetic Level Gauge. But the Ball Floating Level Meter is recommended for you. | ||
| Accessories list of skid station | ||
| Item name | Model Number | Quantity |
| CORKEN pump and ABB motor | Z2000EGAEE | 1 Piece |
| Digital filing scale | / | 4 Pieces |
| Safety Reverse Valve | AH42F-25DN25 | 1 Piece |
| Check Valve | H42N-40DN50 | 2 Pieces |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Filling Gun pipe | L=2M | 3 Pieces |
| Elbow Cap | DN65 | 2 Pieces |
| Elbow Cap | DN50 | 10 Pieces |
| Alarm system | QJ-D-99F | 2 Pieces |
| Flange | 2.5MPaDN65 | 1 Piece |
| Flange | 2.5MPaDN50 | 50 Pieces |
| Flange | 2.5MPaDN32 | 1 Piece |
| Flange | 2.5MPaDN25 | 8 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Metal gasket | DN65 | 5 Pieces |
| Metal gasket | DN50 | 80 Pieces |
| Metal gasket | DN32 | 2 Pieces |
| Metal gasket | DN25 | 10 Pieces |
| Metal gasket | DN20 | 2 Pieces |
| Metal gasket | DN15 | 30 Pieces |
| 8.8 degree Bolt | 16*70 | 300 Pieces |
| 8.8 degree Bolt | 12*55 | 100 Pieces |
| Bottom Base | / | 1 Piece |
