Generator Diesel Water Cooled 50kw Diesel Generator for Sale Diesel Generator 50kw

Product Description

Product Parameters

Technical specification parameters of 50KW series diesel generator set
Unit model	WH-50GF	Rated power	50KW
Rated output voltage	230V/400V	Rated power factor	0.8
Rated current	90A	Insulation grade	H
Rated speed	1500/1800rpm	Protection grade	IP22
Rated frequency	50/60HZ	Overall dimension (mm)	1850*750*1300
Voltage Control Methods	AVR	Overall weight	600KG
Technical specification parameters of diesel engine
Brand	WANHAI	Model	ZH4105ZD
Cylinders	4	Speed	1500/1800rpm
Bore * stroke(mm)	105*125	Power	55KW
Displacement	4.33	Fuel consumption rate	209g/kwh
Type	Straight line, four stroke	Lubrication mode	Pressure and splash type
Intake mode	Turbo charged	Start-up mode	24V DC electric start
speed regulation	Mechanical speed regulation	Cooling mode	Closed water cooling

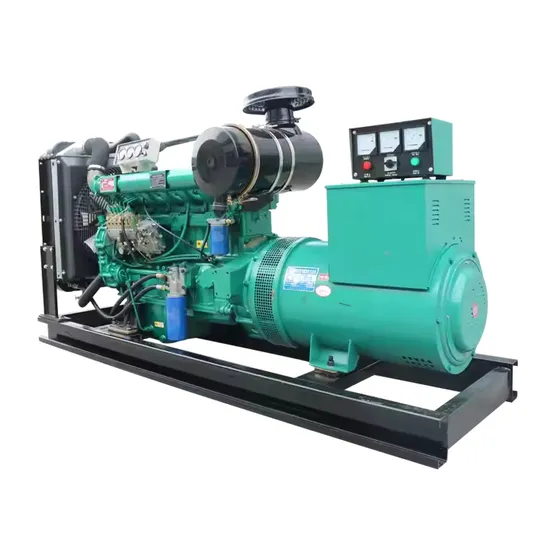

Detailed Photos

SIDE

FRONT

Silent type

Product Features
SILENT TYPE DIESEL GENERATOR SETS
The diesel generator set is carefully designed by introducing foreign low-noise generator and engine technology; Advanced design concept and complete variety. The box body is all of a detachable structure, made of steel plates spliced together, coated with high-performance anti rust paint on the surface, and has noise reduction and rainproof functions; The interior of the box adopts a multi-layer barrier impedance mismatch noise reduction structure and a built-in large impedance muffler. At the same time, there are observation windows and emergency stop fault buttons on the box to observe the operation of the unit and stop it as quickly as possible in case of emergency to avoid damage to the unit.
MOBILE MUTE DIESEL GENERATOR SET
1.Convenient traction with flexible traction rod
2.Safe andstable traction with shift of manual and pneumatic brake.
3.Protection from severe environment withsteel shell.
4.Optional installation of cable and cable reel,the 30 metercable ensures user's large range and long distance transmission.ATS DUAL POWER SWITCHING SYSTEM
The ATS structure and use unit is designed with advanced control system which is using a specialized program controller. The unit will start automatically, when losing electric supply,lack of phase or under voltage.
When a fault occurs,the sound and lightalarmwill send automatically by the sending-to-alarming device,and the point of failure will berecorded, at the same time it can automatically make the machine poweroff,to ensure the safety of unit.The control panel uses VFD and soft touch switch,with feel good, clear display,reliable action features.
The control panel can be also designed for more than two units' automatically interconnection under the customer's requirement,using PLC as the main control unit,by the control software to vary the pulse width and pulse interval,the adjustment process is rapid, accurate and steady, the performance is stable and reliable.

FULL AUTOMATIC CONTROLLER

Smart Gen The controller uses a large screen LCD display,with Chinese, English, Spanish and Russian operation interface,the operation is simple and reliable.The automation controller uses the microprocessor technology to realize the precision measurement of variousparameters,the fixed set-point control and the adjustment and detection through the programming interface.It has compact structure,simple wiring and high reliability,and canbe widely used in various types of generatorautomation systems.

DEEP SEA CONTFOLLERThe controller designed for controlling generator set, automatic control of the power on and off,through the bright LED and LCD indicates the current working state, the relevant parameters,fault content etc.Control function can be adjusted,modify and secondary development according to the user's requirements. Main features: microcomputer control module, automatic startup and shutdown,display the running status and parameters of the unit,phenomenal alarm, status graphic identification,quick display of unit information,LED and LCD alarm signs.

Packaging & Shipping
Certifications
Company Profile
FAQ
Q1: Are you a manufacture factory or trade company?
A1: We are the manufacturer factory specialized in diesel generator set industry for many years already. Annual output 20,000sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.
2) Each process under control of IPQC (Input Process Quality Control).
3) Each generator set/part must be pass 100% inspection between process.
4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost. And it's negotiable which based on quality or exact demands. It'll be much helpful if more details could be provided when you make an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received. Most of the diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ is 1 set.Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands. Own design/LOGO on generator set available as well.Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10 days before shipment. Or 100% L/C at sight.
