High Quality Cheap Price AAA 2PT 3PT 4PT 23.8mm Height Flat Strip Coil Steel Knife

Product Description

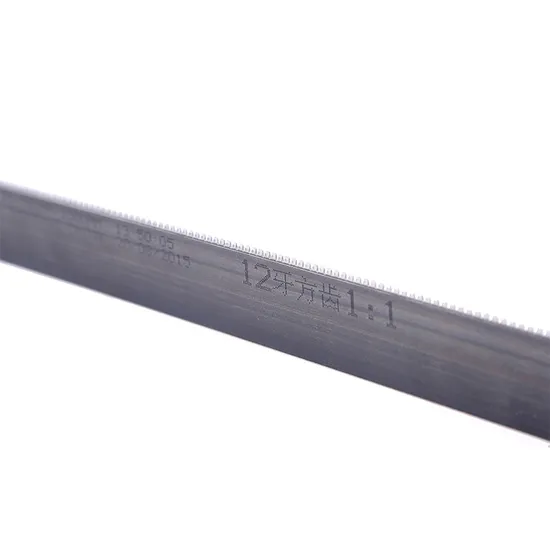

Cutting and Creasing Rule
1. Application
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
2. Types available
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.

Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching

Name	Thickness	Height/length (mm/mm)	Package (pcs/m/box)	Body hardness	Edge angle
Cutting rule	0.45	23~23.80/1000	150	38HRC-54HRC	42°\52°
	0.53	23~23.80/1000	125
	0.71	23~23.80/1000	100
	1.05	23~23.80/1000	70
	1.42	23~23.80/1000	50
Creasing rule	0.53	22.00~23.80/1000	125	38HRC-54HRC
	0.71	22~23.8/1000	100
	1.05	22~23.8/1000	70
	1.42	22~23.8/1000	50
Wave rule	0.71	23~23.80/1000	100	38HRC-54HRC
Perforating rule	0.71	23~23.80/10001*1~10*10	100	38HRC-54HRC	42°\52°
	1.05	23~23.80/10001*1~10*10	70

Die cutting cardpaper, box, carton, corrugated box and so on...
Cutting rules in coils is very suitable for auto bender.
Our Services
1. QC System:100% inspection before shipment.

2. Drawing format: CAD / PDF/ DWG/ IGS/ STEP

3. Packaging: Standard package / Pallet or container / As per customized specifications

4. Payment Terms: 30 -50%T/T in advance,

70-50% balance before delivery; PayPal or Western Union is acceptable.
