4500bph Maximum 2liter Plastic Pet Bottle Blowing Molding Machine

4500bph Maximum 2liter Plastic Pet Bottle Blowing Molding Machine

US$15,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q4500
Warranty
1 Year
Color
Orange or Blue
Bottle Material
Pet
Cavity
3
Product Max Volume
2L
PLC
Mitsubishi
Driven Type
Servo
Raw Material
Pet
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Wooden Package/According to Customer′s Request
Specification
CE ISO SGS
Trademark
Eceng
Origin
Zhangjiagang Jiangsu
HS Code
8477300000
Production Capacity
100per Year

Product Description

Product Description

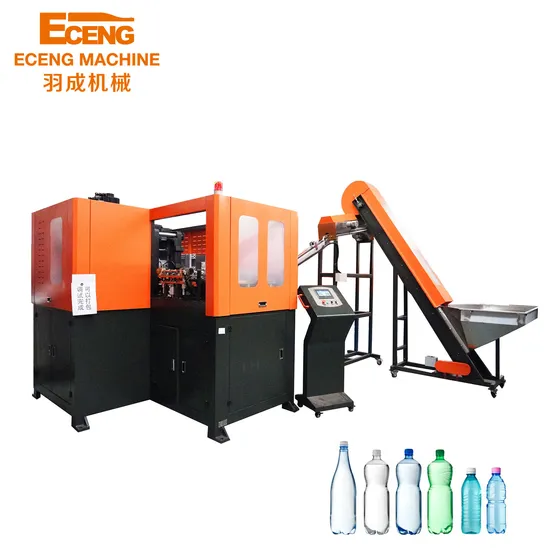

4000-4500bph 3 cavity Plastic Pet Bottle Blow blowing Molding Machine
model:Q4500
Product Parameters
item Q4500

Bottle type specification
cavity 3
theory output (PCS/HR) 4000-4500
Max. volume (L) 2L
Bottle mouth maximum overall diameter (mm) 28-38mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Power specifications
Light tube quantity 32pcs
Light tube power 1.25kw
Maximum heating power 40kw
All electric machine installation 43kw
Actual consumption 21.5kw

Air pressure specification
Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 2500 Ltr/min

Frozen water specification
Work pressure 5-6 kg/cm2
Temperature range 10
Consumption 8000kcal/hr
Frozen water flow 88Ltr/min
Machine specification Size of the machine 4.0x1.6

Detailed Photos
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
ECENG machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Company Profile
Eceng Machinery is a diversified conglomerate with a history of 17 years. Our company was founded in 2007 and is committed to providing a One-Stop Solution for All PET Packaging Needs.
Up to now, we have developed into a one-stop service provider that aggregates three factories. We have a blow molding machine factory, a packaging machine factory, and a mold factory. We provide turnkey projects for your bottled water/beverage juice/daily chemical packaging/carbonated beverage production lines and oil filling production lines.
FAQ
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
warmly welcome to visit our factory!
