Type 400 Fully Automatic Fried Instant Noodles Production Line Making Machine

Product Description

Thank you for checking our company's products.
Our company is a large convenience noodle machine manufacturing factory in China, with 50 years of production experience to date.
I invite you to visit my factory, where you can get the best quality and the best price.

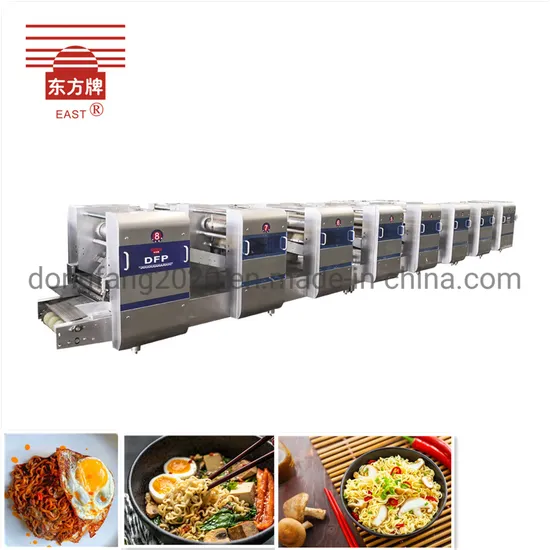

Type 400 Fried Instant Noodles Machine Production Line
The fried instant noodle machine production line is a square noodle production line researched and developed by our company in 1990. After more than 30 years of continuous updating, replacement and improvement, it has become a series of products that are very popular among domestic and foreign customers. The size and gram weight of the noodle block can be adjusted. Each instant noodle production line can be equipped with two sets of noodle boxes, producing two various sizes of noodle blocks help customers increase the variety of noodle blocks. The degree of automation is higher, and the production from flour to finished products can be fully mechanized, with only 3 operators. The capacity can reach from60000pcs to 400,000 pcs/8h, which fully satisfy the needs of large enterprises.
The fried instant noodle making machine production line can produce many kinds of products, such as Indomie noodles, Nissin Foods, Maggi, MAMA, Wai Wai, Shin Ramyun, Master Kong, etc. Moreover, the instant noodle production line can also be customized according to the samples provided by the customer. This is an important reason why customers in more than 50 countries have been cooperating with our company for a long time.
Features of Instant Noodle making machine Production Line
1. The noodle blocks' shape is neat, the ripples and the color are uniform.
2. Finished products meet food safety requirements. The production process conforms to safety operation standard
3. PLC programmable controller realizes the full automation control of the production process, the synchronous speed regulation of the whole line of equipment, the monitoring and management of the data of a single equipment, and the remote cross-border monitoring can be realized through the Internet.
4. The parts or equipment of every link of the equipment in the entire production line in contact with food conform the requirements of FDA(Food and Drug Administration) food machinery. 304 stainless steel or food-grade materials are used to ensure the safety and health of noodle food.
5. All transmission parts have outer shields to ensure safe operation without accidents.
Technical parameters of instant noodle production line
output: 110,000bags/8H
roller pairs: 8 pairs
steam consumption:≥0.8Mpa;
Total Power:around 80KW not including packaging machine,380V,50Hz ;
Environment and working conditions of instant noodle production line
Industrial electricity, power supply, water and steam are required in the workshop.
Flow Chart
Brine mixer→Brine measuring device→Dual-axis Mixer→Aging machine→Compound roller→Multi-layer steamer→Square noodle cutting and dividing machine→Fryer→Cooling machine → Packing machine
.
Parameter
Please tell me how many capacity what you need .

model number	Capacity	Power	Steam consumption	Workshop for single layer steamer dimension(m)	Workshop for 3 layer steamer dimension(m)	Workers
BFP-200	40000pcs/8H	45KW	1200-1300KG/H	70*5*4	50*5*4	4
BFP-300	60000pcs/8H	56 KW	1200-1400KG/H	75*5*4	60*5*4	4
BFP-400	110000pcs/8H	83 KW	1800-2000KG/H	100*6*4	75*6*4	4
BFP-500	140000pcs/8H	90 KW	1800-2100KG/H	100*6*4	75*6*4	4
BFP-600	160000pcs/8H	106 KW	2000-2200KG/H	100*7*4.5	80*7*4.5	5
BFP-700	200000pcs/8H	114 KW	2400-2600KG/H	110*8*4.5	80*8*4.5	5
BFP-800	230000pcs/8H	125 KW	2600-2800KG/H	110*8*4.5	90*8*4.5	5
workers:( not including packaging workers )

details of unit machine

The 400 Type Roller Machine
The 400 new type Roller machine adopts a brand-new appearance design, which is beautiful and novel, giving people a completely new feeling. Adopting four-axis feeding, smooth feeding, ensuring the integrity of the noodle sheet, and excellent sheet forming effect; especially the effective combination of photoelectric tracking and automatic sheet feeding, which greatly reduces labor intensity
Waving
After the noodle strip is cutted by the slitter, it enters the pattern forming device, and after it comes out, it forms a wave

Multi-layer Steamer
Water-sealed multi-layer noodle steamer is a new product developed by our company. It has a smooth appearance and is water-tight and air-tight, which solves the problem that the traditional multi-layer steamer must be sealed with rubber strips
cutter and divider
The noodle cakes will be sent to the inlet of fryer by silica gel tray after cutting and folding, through sliding plate into stainless steel noodle boxes. We add the interval water spraying structure to ensure the noodle cakes into boxes smoothly. The improved folding device has advantages of low noise and flexible. It can still work properly when the speed of cutting achieving 500 pieces/min
Fryer
The fryer is the most critical equipment for producing instant noodles. The shape of the fryer is streamlined; the outer return of the noodle box reduces the height of the oil surface lengthens the oil drain section, adds strong oil blowers, and reduces the noodles oil content. 2-3% lower than similar products
Dual-axis Flour Mixing Machine
The place where flour and water are mixed and stirred. Dough mixing is the process of stirring flour and brine mixture in a certain proportion, so that the protein and starch in the flour absorb water and swell to form a flocculent dough. The flour mixer adopts a double-shaft structure, and the stirring paddle is in a spiral shape on the shaft. The two shafts rotate in opposite directions, so that the flour can fully absorb water and be uniform.
In addition to storing oil in the hydraulic system, the oil tank also plays the role of heat dissipation, separation of air bubbles in the oil, precipitation of impurities, and continuous oil supply.

Packing machine
Automatic bag noodle packaging machine with printing of date of production and date of expiration of product
Auto feeder can make the noodle cakes into a line, automatically.

Finished Products
noodle cake is square .
Shipping and delivery
Cooperative enterprise
Certification
About Us
1. we have been engaged in manufacturing Instant noodles making machine for 46 years, accumulating rich experience and enjoying high reputation.
2. Long term cooperation with more than 100 customers in more than 50 countries. Provide free technical support and layout solutions for more than 1000 potential customers.
3. we are manufacturer, Fast delivery and good service .All the machines are strictly inspected before making shipment. We can also provide customized equipment according to the noodle products you provide
4. We have ISO9001 and CE certificate,And more than 50 patent certificates
5. Installation and commision: we will send 2 technician to buyer's factory and Train employees how to operate.Warranty is for one year
6. Different production line can make fried/non- fried instant noodle, cup noodles, indomie noodles, maggi cup noodles, koka instant noodles, instant ramen, nissin ramen spicy seafood, nissin ramen spicy seafood,chow mein noodles, korean cup noodles etc.
More products
FAQ:
1. Q: Are you manufacturers?
A: We are manufacturer of noodle machine with 40 years experiences, and more than 40 engineers, who can design the machine according to your special request.
2. Q: What is your noodle machine for?
A: Our noodle machine can produce many kinds of noodles, such as stick noodles, fresh noodles, instant noodles, fried instant noodles, non fried instant noodles, chowmein noodles, noodle leaves, extruding noodles, etc.
3. Q: How many countries have you exported to?
A: we have exported to more than 40 countries, such as Canada, Turkey, Malaysia, Nigeria, Bangladesh, Indonesia, India, etc.
4. Q: What is your delivery time?
A: 40-50days. For special request, we can deliver the machine within 30 days.
5. Q: What about aftersales service?
A: We have 30 after-sales service staff with overseas service experience, will to assemble the machine and train the customer's workers when machine arrives.
After sales service commitment
In order to provide better service for customers, to make customers feel more at easy after cooperation with our company.
Our company promise as follows:
1. Three guarantees should be implemented within one year from the date of completion and commissioning of the equipment.
During the warranty period, the company is responsible for repair and replacement of spare parts free of charge in case of failure due to internal quality problems of the equipment (excluding human factors).
2. After the equipment is delivered for use, the supplier should be provided with free technical guidance and training by electrical personnel and mechanical operators in the demander, including can learn after teaching and accommodation.
3. When the demander's equipment is in normal continuous production, the supplier shall send technicians to make a return visit by telephone or email once every six months, and assist the demander in equipment maintenance if there is any problem.
4. After the warranty period. The price of the equipment parts required by the demander (refer to the self-made parts of the supplier) can be reduced by 10% for timely supply.
5. The above services shall be provided until the demander stops using the equipment. During the use of the equipment, if the supplier has new technical projects launched, it can give priority to the technical transformation of the equipment for the demander, and only charge the cost.
Service commitment
This series of products have the characteristics of new technology, reasonable technology, stable operation and convenient maintenance. And be responsible for installation, commissioning equipment and training operator
