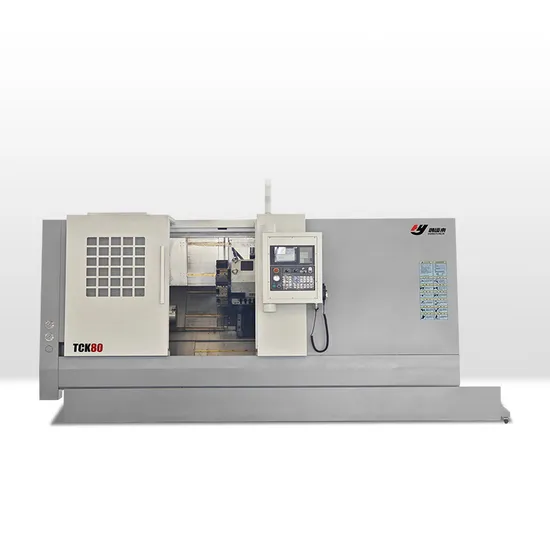

Slant Bed Heavy Duty Turning Machines Lathe Slant Bed Tck80

Product Description

Product Parameters

Item		Unit	specification	notes
slant bed degree		°	45°
swing over bed		mm	850
Maximum cutting length		mm	1500
maximum cutting diameter		mm	750
maximum turning diameter on slide plate		mm	550
spindle nose form and code			A2-11
diameter of spindle hole		mm	120
maximum bar diameter		mm	105
single spindle headstock	spindle speed range/maximum output torque of spindle	r/min/Nm	50-1300/573 plus 1/4 reducer
Output power of main motor	30min/continuity	kw	15/18.5
Shandard chuck	chuck diameter	inch	12²
X-axis fast moving speed		m/min	10
Z-axis fast moving speed		m/min	12
X-axis travel		mm	385
Z-axis travel		mm	1600
standard tool holder		DRIVE TOOLS	BMT45	125 center high
tailstock travel		mm	1500
tailstock sleeve travel		mm	100
tailstock sleeve diameter		mm	138
taper of tailstock sleeve		morse/	5#
tool size	external circular knife	mm	32*32
	boring blade diameter	mm	Φ50/φ40/φ32/φ25/φ20
the cutter head selects the tool nearby			yes
machine weight	Total weight	kg	5000
maximum safe load	disk workplece	kg	350(Including chuck and other machine tool)
	shaft workplece	kg	820(Including chuck and other machine tool)
dimension of machine	(length*width*height)	mm	5500*2300*2500

Product Description

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
