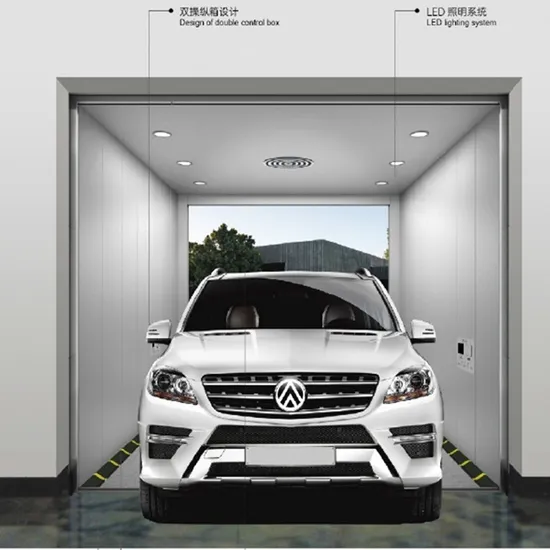

CE Approve High Quality Big Capacity Car Elevator Vehicle Lift

Product Description

The car elevator uses advanced microcomputer control technology and technology integration to greatly improve the performance and quality of the freight elevator and greatly reduce the occurrence rate of failures; because it uses variable frequency electric drive technology, the elevator structure is simpler , maintenance is more convenient.
The optimized designed car of the cargo elevator is spacious and bright, economical and practical, making cargo transportation convenient and fast, safe and reliable, with balanced operation, large load capacity and other excellent qualities. It can meet the needs of customers in different uses and environments such as commercial building, parking building, car showroom, warehouse, etc.
COP/ LOP
Landing Door
Technical Advantages
Traction systemThe traction host of the TF1000 series freight elevator is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology can fully meet the dynamic adjustment requirements, and the elevator runs smoothly and accurately, significantly improving the elevator's response speed and comprehensive performance.
Energy saving and comfort
The use of VVVF speed regulation technology greatly reduces the power supply capacity, saves nearly 40% energy than traditional AC two-speed technology, and minimizes elevator power consumption. This technology can not only adjust the elevator speed, but also has constant torque characteristics, regardless of the load, which can greatly improve the comfort of elevator operation, leveling accuracy and reduce operating noise.
Sturdy structure, large door spacing
The multi-folding hall car door is adopted to achieve the maximum door opening width, which facilitates the entry and exit of large goods; the stronger car bottom can reliably bear all kinds of goods, and the accurate weighing device controls the load to prevent overloading.
Maximum capacity 30000kg

Model	Capacity (kg)	Speed (m/s)	Car Size CW*CD*CH (mm)	Door Opening Size OP*OPH (mm)	Shaft Size HW*HD (mm)	OH (mm)	PT (mm)	Rated Power (kw)
Q3000	3000	0.25-1.0	2700*5500*2200	2700*2100	4500*6100	4500	1800	15-18.5
	5000	0.25-1.0	2700*7000*2200	2700*2100	4500*7600	4500	1800	22-30
	8000	0.25-0.5	3500*7500*2200	3200*2100	5300*8500	4800	1800	30-45
