High Precision Six-Sided CNC Drilling Machine for Rapid Production

Product Description

Technical Paremeters

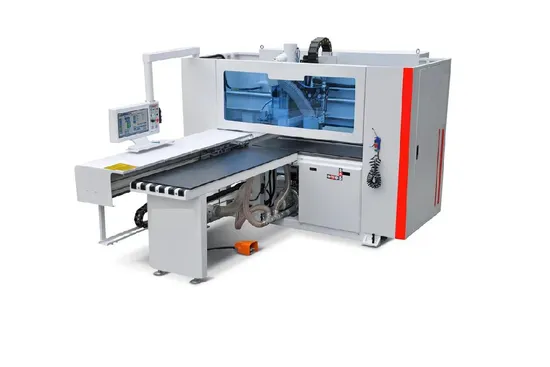

HD-2812 CNC SIX SIDE DRILLING MACHINE

Spindle motor	Brand	CC
	Quantity	2
	Power(KW)	3.5
	Speed(Rmp/min)	18000
	Chuck specifications	ER25
Drive System	Way	Servo drive
	Motor	Eston absolute value servo
	Driver	Eston Absolute Drive
Frequency convere	Brand	EDT
	Power	3.7KW adjustable frequency conversiol
Control System	Higerman system
Reducer	Janpanese shimpo
Guide	Taiwan square rail
Rack gear	Geman high-precision helical gears
Position	Automatic positioning system
Close side	Automatic side close
Electric wire	Highly flexible cable
Bed frame	Heavy lathe bed annealed
Work surface	Air floating tabletop
	High pressure blower 0.75KW
Vacuum cleaner	The upper vacuum port is 200mm; the lower vacuum port is 125mm
Power supply type	380V 50/60HZ

Product Details

Higerman CNC system:
Using Windows human-machine interface, Higerman control system,Intelligent CAM software. Drilling data can be imported using CAD, which is quick and easy to operate.Can match user production design management software, no need to input drilling data independently.
Continuous scanning:
Supports barcode/QR code,Scans to automatically load processing graphics files,And automatically retrieves NC program processing.
Data analysis system:
Automatically analyzes plate data after scanning.Intuitively displays the size, depth and coordinate information of plate holes and slots,Easy to query and correct data.
Independently adjust tool processing speed:
Through processing data analysis,Customize processing speed for each drill bit,More flexible production and processing
Flexible discharging
Optional front/rear/side discharging,with automatic lifting unloading table,multiple unloading options for easy automatic connection
Above drilling bag,spindle Spindle

Fully automatic side push Electric box

Operating platform Below drilling bag
Application

Apply to processing all kinds of density boards,PVC board,artificial board,ABS board,PVC board,and others with wood structure and similar hardness.
Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you. Certifications
Exhibitions

Our customer feedback

FAQ

FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?A5.Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.
