Chinese Manufacturer Building Construction Elevator Equipment Sc200/200 Elevador OEM Factory High Quality

Product Description

Product Description

Item	Construction hoist
Model	SC100/100/SC200/200
Rated capacity/per cage	1000kg-2000kg
Lifting speed	0-63m/min,0-42m/min,0-33m/min
Cage size	3.2*1.5*2.4m
Motor power	3*15kw/3*11/2*15/3*18.5
Speed ratio	1:18 /1:16
Invertor Power	45 kW/37kw
Safety device	SAJ40-1.2/SAJ40-1.4/SAJ30-1.2
Mast section size	0.65*0.65*1.508m
Max. Installation height	300m
Cable type	Cable basket/cable trolley

Model Type

Characteristic		Model	Rated Loading	Lifting Speed	Motor Power
Double cages		SC200/200	2x2000kg	33m/min	2x(3x11kw) / 2x(3x8.5kw)
		SC150/150	2x1500kg	33m/min	2x(2x13kw)
		SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single cage		SC200	2000kg	33m/min	3x11kw /3x8.5kw
		SC150	1500kg	33m/min	2x13kw
		SC100	1000kg	33m/min	2x11kw
Double cages	Low speed	SC200/200D	2X2000kg	0-40m/min	2x(3x11kw)/2x(3x8.5kw)
		SC100/100D	2x1000kg	0-40m/min	2x(2x13kw)
	Mid speed	SC200/200Z	2x2000kg	0-60m/min	2x(2x23kw)
		SC100/100Z	2x1000kg	0-60m/min	2x(2x15kw)
Single cage	Low speed	SC200	2000kg	0-40m/min	3x11kw /3x8.5kw
		SC100	1000kg	0-40m/min	2x13kw
	Mid speed	SC200	2000kg	0-60m/min	2x23kw
		SC100	1000kg	0-60m/min	2x15kw

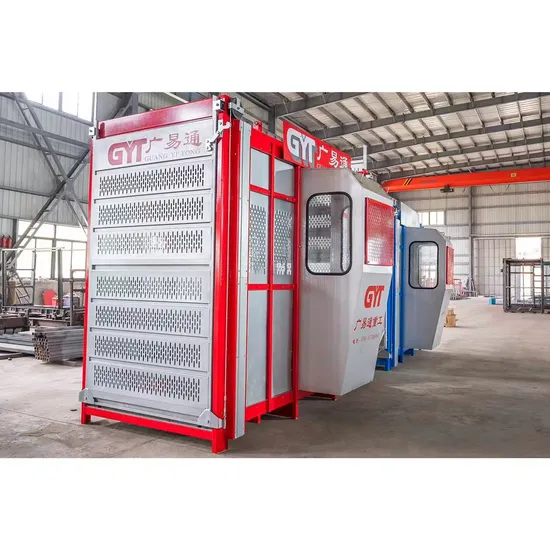

Detailed Photos 1. Construction hoists could be designed according to different building situations.
2. With ISO9001, CE, and SGS, certifications
3. Double or Single cage with loading capacity from 1000 kg to 2000kg.
4. With Frequency converter or DOL control system with low speed, MID speed, and high speed.
5. All Production Lines adopt special fixtures, mold, and gauges made by us to ensure all sizes are suitable.
6. Select high-quality raw materials from China Bao Steel Group. The spare parts of motors, reducers, gearbox, and safety device with low noise, while electric parts or Germany brand has reliable quality.
7. The compact and reasonable structure with the special design is easy to install and adjustment.
8. Each piece of equipment will be tested and made recorded in the Factory and all details will be adjusted such as motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section.
9. The erection test will ensure the completed equipment runs well when taken into use.
Product Workshop

Project Example
Company ProfileABOUT US
GuangYiTong Heavy Industry Machinery Co., Ltd is located in the national pilot Free Trade Zone in Fuzhou, China. It is a comprehensive company, that integrates design, production, sales, and leasing. As a professional manufacturer of construction elevators for more than 20 years, it covers an area of nearly 20000 square meters. The production workshops cover 19, 980 square meters. The company has more than 80 employees, including 28 engineering technical personnel, including 15 technicians with intermediate and senior titles. The company′s product quality is stable, cost-effective, applicable, and high-quality after-sales service, has won a wide range of reputation and has become one high-quality supplier of many well-known construction companies such as MCC, CRCC, CREC, and CSCEC in China and some companies in South America, South Asia, and Europ. In the new coming journey, our company will take "creating high-quality machinery, creating a great enterprise brand "as our goal, advocating the culture of quality management in the whole process of production line of high-quality machinery.We are looking forward to your sincere cooperation to create a new starting point of wealth.
Customer Visits and Feedback
Why Choose Us?Fuzhou GuangYiTong Machinery Co., Ltd. is a professional manufacturer and exporter.Our products are construction hoist and suspension platforms, We can do OEM for Our customers.
1. 10 years more manufacturing experience and 3 Years of exporting experience.
2. Great technician Team with innovation and improvement abilities
3. Zero accident record and good feedback from the end-users.
4. Best price offered with special discount, high quality, and stable operation experience.
5. Fast response with sales and after-sale service
6. Welcome agents or distributors all over the world for cooperation partnerships.
FAQ:
1. What are your main products?
We produce all kinds of Construction Elevator Passenger materials hoist from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.
2. Are all Construction elevators the same from all Vendors & Manufacturers?
Our High rise building Construction Elevator Passenger materials hoist with VFD for lifting materials and passengers has been exported to Europe, Middle, and Southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russian standards, and American standards. We have the technology for developing new design ability and we support many customers with good solutions to solve their construction site special vertical access problems.
3. Do your products have some certificates?
Yes. Our building Construction Elevator Passenger materials hoist has passed CE, ISO, and SGS Certificates.
4. What are the payment terms and the delivery time?
Payment terms for building the Construction Elevator Passenger materials hoist are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you a manufacturer or a trader?
We are a manufacturer of building Construction Elevator Passenger materials hoists with 10 years of maker experience, have an advanced production line and inspection device. Our Research and development team has got a lot of praise from customers.
6. Will you develop a distributor and sole agent?
Yes, should you have any interest to be our building Construction Elevator Passenger materials hoist distributor and agent, please let us know in anyways. The sole agent is available depending on sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping of building Construction Elevator Passenger materials hoist to countries all over the world from Fuzhou port.
We have done the business of building Construction Elevator Passenger materials hoists with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait, Saudi Arabia, etc.
8. Quotation request:
If you are interested in our building Construction Elevator Passenger materials hoist, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temperature
6) Local power supply (V, Hz)
7) Is there any space limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipment.
9) FOB or CIF price? If CIF, plz let us know your destination port.
We will provide the best price for building the Construction Elevator Passenger materials hoist once confirmed the above. You can get our feedback within 12 hours!
