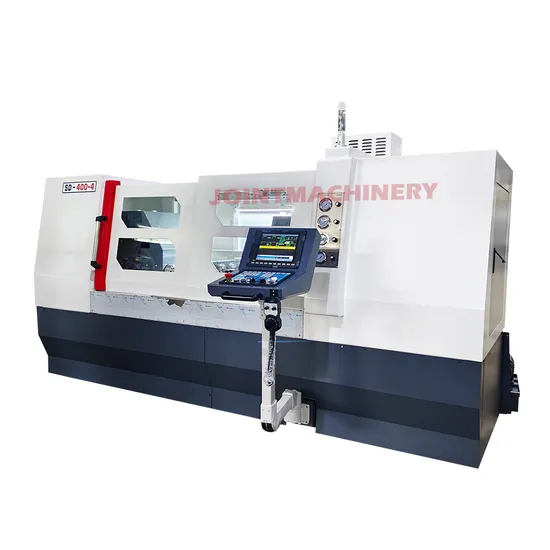

Horizontal CNC Deep Hole Drilling Machine Tool for Shaft Parts Manufacturing

Product Description

Drilling stands as the cornerstone of machining operations, encompassing the broadest spectrum of applications in the field. Traditional equipment like bench drills, milling machines, radial drills, and other such tools used to confine laborers to repetitive tasks, compromising both quality and efficiency due to safety constraints and processing limits. However, the advent of the CNC era has revolutionized this scene. The emergence of CNC deep drilling machines has liberated laborers from manual drudgery and resolved the bottleneck in deep drilling processes. It enables single-pass drilling to meet the quality standards of conventional drilling, reaming, and expanding techniques, while also incorporating automatic chip removal, CNC positioning, and seamless automatic processing. This transformation heralds a new dawn of precision, efficiency, and enhanced operational safety in the drilling domain.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Multi-Spindle Deep Hole Series
The multi-spindle deep hole drill is a high-specialization machine tool crafted for the intricate task of machining the center deep holes in shaft parts. It is engineered to deliver impeccable solutions for customers, offering unparalleled efficiency, precision, and surface finish in deep hole machining for shaft parts.
1. Engineered specifically for machining the center hole of bar stocks, it excels in deep hole machining tasks for the central aperture.
2. Doubly efficient, this machine enables simultaneous processing with dual spindles, dramatically enhancing productivity.
3. Featuring tapered hole guidance and high-pressure oil cooling, it assures unparalleled precision and a superior finish in every operation.
4. Tailor the machine to your needs with options for a Siemens or Taiwan's cutting-edge CNC system, selected per your specifications.
5. Elevate automation with the option to equip the system with a manipulator for automatic loading and unloading, boasting a remarkable degree of automation.
Horizontal CNC Deep Hole Drilling Machine Tool for Shaft Parts Manufacturing

Model	Unit	SD-500
Inner diameter of drilling	mm	2.0-20
Max drilling depth	mm	500
Max diameter of workpiece	mm	80
Max length of workpiece	mm	500
Max rotating speed of principalaxis	rpm	6000
Clamping diameter range	mm	10-100
Spindle feed speed	mm/min	0-150
Spindle travel speed	mm/min	0-5000
Workpiece rotation speed	rpm/min	144
Spindle rotating motor power	kw	5.5/7.5
Workpiece rotating motor power	kw	0.75*2
Total power of machine tool	kw	26
Coolant pressure range	mpa	3-12
Coolant flow range	L/min	0-64
Machine size	mm	4800*2000*2500
Machine weight	kgs	4300
