Bending Machine 3m in Length, Press Brake Machine

Bending Machine 3m in Length, Press Brake Machine

US$6,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WC67Y-100T/3200
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Control System
Estun E300 CNC Controller
Control Axis
3(Y, X, R)
Power Supply
Customized as You Request
Hydraulic System
Rexroth
Transport Package
Nude Packing, Steel Pallet
Specification
12CBM
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462299000
Production Capacity
40PCS/Month

Product Description

NC & CNC Hydraulic Press Brake, Sheet Metal Bending Folding Machine
Machine Performance & Advantages:
» The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
» Synchronized positive stop design, and by Estun CNC programmable controller assuring accurate repeatability & ease of use.
» Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
» Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
» Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety.
» The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably.
» Mechanical stop nuts ensure stable and reliable positioning accuracy.
» The segmented punches of different length are adopted which can be combined into a certain
Length according to the processing demand to meet the different requirement of special workpieces.
» Back gauge is driven by linear guide way and ball screw, quick, convenient and accurate.
» The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency.

Technical Parameters:
Model Nominal pressure Worktable length Distance between columns Throat depth Opening Motor Dimension(LXWXH)
Ton mm mm mm mm Kw mm
40T/1500 40 1500 1180 250 325 4 1850×1300×2100
40T/2000 40 2000 1550 250 325 4 2250×1300×2100
40T/2500 40 2500 2050 250 325 4 2750×1300×2100
63T/2500 63 2500 2050 250 360 5.5 2750×1350×2230
63T/3200 63 3200 2600 250 360 5.5 3450×1350×2230
80T/2500 80 2500 2050 320 380 7.5 2750×1400×2350
80T/3200 80 3200 2600 320 380 7.5 3450×1400×2350
100T/2500 100 2500 2050 320 380 7.5 2750×1450×2380
100T/3200 100 3200 2600 320 380 7.5 3450×1450×2380
100T/4000 100 4000 3200 320 380 7.5 4250×1450×2380
125T/2500 125 2500 2050 320 380 7.5 2750×1450×2380
125T/3200 125 3200 2600 320 380 7.5 3450×1450×2380
125T/4000 125 4000 3200 320 380 7.5 4250×1450×2380
160T/2500 160 2500 2050 320 380 11 2750×1700×2600
160T/3200 160 3200 2600 320 450 11 3450×1700×2600
160T/4000 160 4000 3200 320 450 11 4250×1700×2600
200T/3200 200 3200 2600 320 470 15 3450×1850×2860
200T/4000 200 4000 3200 320 470 15 4250×1870×2950
250T/3200 250 3200 2600 400 530 18.5 3450×1920×3050
250T/4000 250 4000 3200 400 530 18.5 4250×1950×3150
300T/3200 300 3200 2600 400 560 22 3450×2200×3130
300T/4000 300 4000 3200 400 560 22 4250×2250×3320
300T/6000 300 6000 4700 400 560 22 6100×2250×4250
400T/3200 400 3200 2600 400 640 30 3200×2280×3250
400T/4000 400 4000 3200 400 640 30 4000×2300×3600
400T/6000 400 6000 4700 400 640 30 6000×2350×4650
500T/6000 500 6000 4700 400 640 37 6000×2450×4700
600T/6000 600 6000 4700 460 650 45 6000×2700×5710

Provide all kinds of bending tools for complex workpiece:

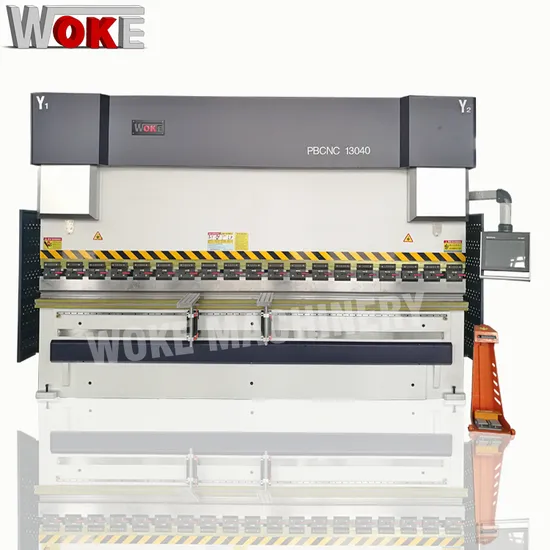

Machine view:
E21 NC control system, 2 Axis(Y,X)
Features:
-Backgauge and block control -Control for general AC motor, frequency inverter
-Intelligent positioning -Stock counter -Holding / decompression time setting
-Program memory of up to 40 programs up to 25 steps per program -One side positioning
-Retract function -One key backup/restore of parameters and programs -mm/Inch -Chinese/English
E300 CNC control system, 3 Axis(Y,X,R), Servo drive
Features:
-Support X,Y, R servo control, hydraulic or mechanical crowning option
-Built-in control logic, hydraulic valve and I/O port logic configuration freedom.
-Accuracy angle program, built in tool library and material.
-EDS/ProNet servo.
-Microswitch keyboard plate
-Collision detection,R axis collision avoidance function.
-USB interface. One key backup/restore of parameters and programs.
-One page program.
-Advanced CAD bus servo technology.
-Color LCD screen
DELEM DA52S , DA58T, DA56, DA66T CNC control system, 3 Axis(Y1, Y2, X) or more(R,Z1, Z2)
Features:
-Quick, one page programming
-Hotkey navigation
-7'' widescreen colour TFT
-Up to 4 axes(Y1, Y2, and 2 auxiliary axes)
-Crowning control
-Tool/material/product library
-USB, peripheral interfacing
-Advanced Y-axis control algorithms for closed loop as well as open loop valves
-Panel based controller with optional housing.

Sectionalized punch can combine any size you want:
