Big Bottle 1 Cavity Pet Blow Molding Machines on Sale

Product Description

big bottle 1 cavity pet blow molding Machines on Sale
Model type: YCQ-5L-1E
Product max volume: 5L
Suitable for blowing bottles between 150ml to 5000ml
Necessary auxiliary devices: High pressure air compressor, High pressure air filter, Low pressure air compresor, low pressure air filter, Chiller, Cold Dryer

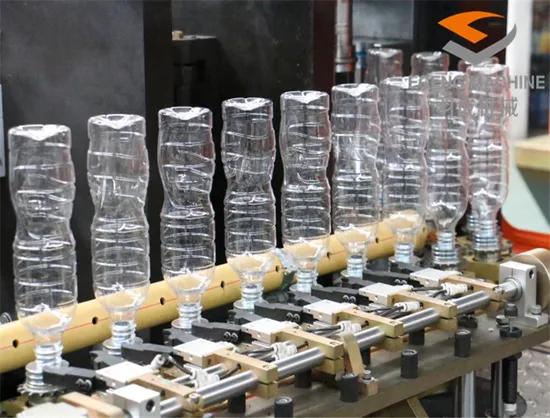

Automatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
Machine Settings of PET Bottle Blow moulding machine
1) PLC colour display: MITSUBISHI(Japan)
2) Pneumatic parts: FESTO(Germany)
3) Value: FESTO (Germany)
4) Other electric parts are all world-famous brand
Machine Featuers of PET Bottle Blow moulding machine
1. Stable performance with advanced PLC.
2. Conveying preforms automatically with conveyor.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure and double crank links to lock the mold.
9. Two ways of operating: Automatic and manual.
10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
12. Contamination is avoided for the bottle body.
13. Ideal effect of the chilling with the chilling system.
14. Easy installation and starting
15. Low rejection rate: Less than 0.2 percent.

	item	YCQ-5L-1E
Bottle type specification	cavity	1
	theoryoutput(PCS/HR)	1200-1500
	Max. volume (L)	5L
	Bottle mouth maximum overall diameter (mm)	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1kw
	Maximum heating power	32kw
	All electric machine installation	35kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1200Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	2000-2500 Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10
	Consumption	4000kcal/hr
	Frozen water flow	30Ltr/min
Machine specification	Size of the machine	2.4x1.5x1.7 (m)
	Weight of the machine	2ton

The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
