Hot Sale Self Loading Concrete Mixers Hy160/Hy200/Hy220/Hy400/Hy420 Cheap Factory Price
| US$10,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY220
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
35m²/h
Feeding Height
1400mm
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Travel Speed
High Speed: 0-30km/H; Low Speed: 0-9km/H
Engine
Yunnei
Minimum Turning Radius
6.5m/R
Transmission Mode
Full Hydraulic Transmission
Drive Mode
4-Wheel Drive
Control Mode
Hydraulic Control Valve
Brake Mode
Air Brake
Chassis
off-Road
Tyre Model
20.5-16
Transport Package
Nude Packing
Specification
6252*2200*2892mm
Trademark
EVANGEL
Origin
China
Production Capacity
200units/Month
Product Description

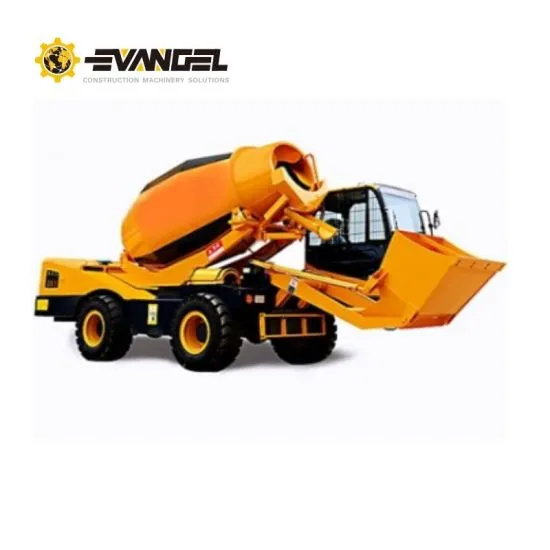

Hot sale self loading concrete mixers HY160/HY200/HY220/HY400/HY420 cheap factory price The HY-220 self loading concrete mixer has a discharge capacity of 2.2M3, using four wheel drive, which can independently complete feeding, weighing, pumping, mixing,transportation, unloading six major functions. It is suitable for concrete transportation and site construction operation, which can greatly improve the production efficiency, reduce the time and cost.
The mixer consists of chassis, transmission system, hydraulic system, frame, mixing tank, charging and discharging device, water supply system, operating system, human ladder etc..
The front end of the mixing tank is connected and installed with the reducer on the front of the frame, and the back end is supported by two riding wheels installed in the back of the frame.
| Net weight | 7100 KG |
| Gross weight | 12000KG |
| Tilt angle | 0.3 |
| Travel speed | High speed: 0-30KM/H; low speed: 0-9KM/H |
| Minimum turning radius | 6.5M/R |
| Transmission mode | Full hydraulic transmission |
| Drive mode | 4-wheel drive |
| Control mode | Hydraulic control valve |
| Brake mode | Air Brake |
| Chassis | Off-road |
| Tyre model | 20.5-16 |
| Overall dimensions | 6252*2200*2892mm |
1. Mixing Drum
| Loader bucket capacity | 0.6m3 |
| Output capacity | 2.2M3 |
| Bank Angle | 16 ° |
| Rotation Angle | 19-21R/min |
2. Engine
| Type | Yunnei |
| Rated Power/RPM | 76KW/2400RPM |
| Max. Torque/RPM | 460N.M/1400RPM |
| Cylinder | 4 |
| Starter | Electric |
| Cooling type | water cooling |
3. Feed mechanism
| Weighing model | computer control | |
| Concrete Standard | C15.C20.C25 C30 | |
| Accuracy | Cement | ≤±2%/time |
| Relative Error | ≤±3%/time | |
| Water | ≤±1%/time | |
| Additive | ≤±1%/time | |
| Admixture | ≤±2%/time | |
4. Chute
| Swing Angle | ≥60° |
| Angle control | Hydraulic |
| Long Size | 176cm |
| Short Size | 40cm |
