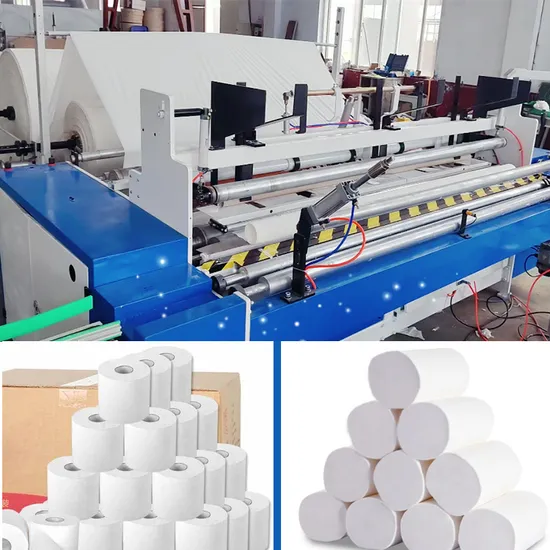

Factory High Speed Automatic Tissue Toilet Roll Rewinding Machine/Toilet Paper Making Machine Tissue Paper Rewinding Cutting Packing Machine

Product Description

Specification of High Speed Automatic Toilet Roll Rewinding Machine
Model	1880	2800	2900	3000	3500	3600	3700
Raw Material Width (mm)	2100	2800	2900	3000	3500	3600	3700
Finished Roll Diameter (mm)	Φ70-135(Tightness adjustable)
Finished Roll Core Diameter (mm)	Φ32~50
Raw Material Diameter (mm)	Φ1500-Φ1800(order)
Raw Material Core Diameter (mm)	Φ76.2mm(Other size are available)
Perforation Pitch	4 perforating blade 110-120mm(Other size are available)
Speed	250M/MIN
Programmable controller	Programmable controller PLC
Unwinding Unit	1-4ply (Order)
Pneumatic system	3HP air compressor, Mini pressure 5kg/c m2, By client
Power	Frequency conversion speed regulator 7.5-18kw(According to model and configuration order).
Overall Dimension(L*W*H)	Depend on the machine model
Weight	Depend on the machine model
Finished Roll Winding	Coreless rewinding system
Embossing Unit	Single , double ply embossing , steel to steel embossing (order)
Edge Embossing Unit	Embossing Unit(order)

1.Full Automatic Toilet Paper Making Machine
2.Semi Automatic Toilet Paper Making Machine
Yidafa company is a professional manufacturer of paper and paper products making machine. We focus on toilet paper machine, tissue paper machine, kitchen paper machine,hand towel paper machine and other equipments.
We also support customized machine which according to clients`special requirements.With high degree of automation and excellent quality and competitive price, our machines are popular with both home and abroad. Such line the Middle East, America, Africa, Southeast Asia,Europe and other countries and regions.

1. The business contact on both sides will reply within 16 hours .
2. During warranty period, the company provide the relevant technical services for free,such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical
service and spare parts with preferential price and efficient manner over a long period of time.

1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
