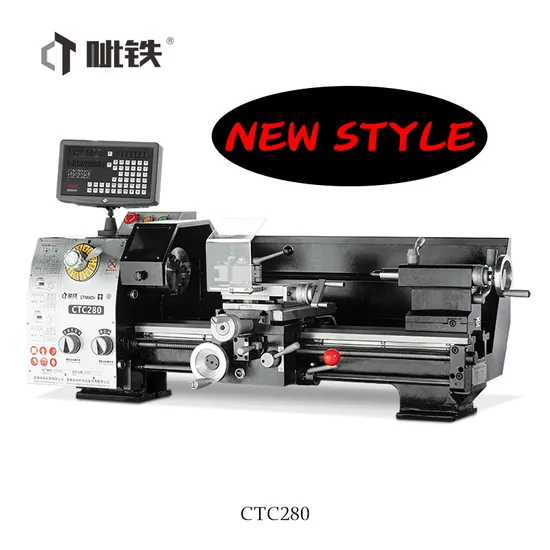

Manual Metal Lathe Machine Ctc280 with Dro and Quick Tool Changer From China
Basic Info.
Model NO.
CTC280
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1100*440*510mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1000
Product Description
| Max. swing over bed | 280mm |
| Max. swing over cross slide | 160mm |
| Distance between centers | 610mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 85mm |
| Taper of tail-stock | MT2 |
| Middle carriage travel | 130mm |
| Small carriage travel | 65mm |
| Metric thread/Grade | 0.25~2.5mm/15 |
| Inch thread/Grade | 12~96T.P.I/10 |
| Transverse feed | 0.015~0.188mm/r |
| Longitudinal feed | 0.03~0.375mm/r |
| Spindle speed range/Grade | 80~1600r/min(12) |
| Motor power | 750W |
| Net weight/Gross weight | 190KG/210KG |
| Overall dimensions | 1100x440x510mm |
| Packing Size | 1200x600x600mm |
