High Efficient CNC Horizontal Machining Center CNC Milling Machine for Metal Processing

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

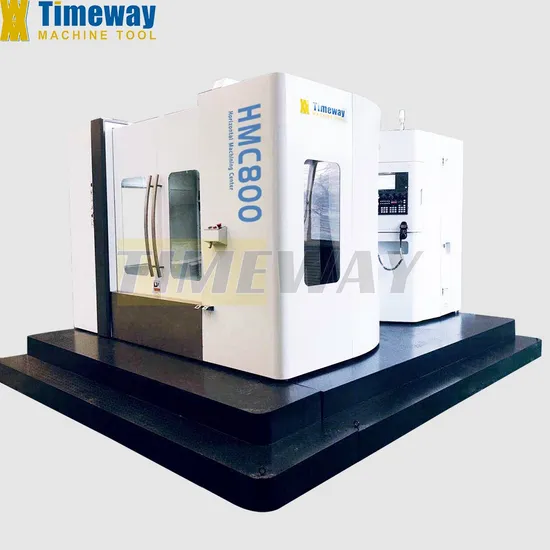

CNC Horizontal machining center

SPECIFICATION	UNIT	HMC500	HMC630	HMC800
Machine structure	-	Positive T-type	Positive T-type	Positive T-type
X-axis travel	mm	800	1100	1600
Y-axis travel	mm	800	800	1000
Z-axis travel	mm	800	1100	1100
B-axis servo motor torque(FANUC)	-	Bis12	Bis22	Bis22
Table size	mm	500x500	630x630	800x800
Table indexing	°	1°×360	1°×360	1°×360
T-slots(No./width/pitch)	-	5-18-100	5-18-100	6-22-125
Table rotation speed	rpm	16.6	16.6	11.1
Loading capacity	kg	800	1500	2500
Locking force(35kg/cm2)	kg/m	5000	5000	5000
Distance spindle center to table	mm	50-850	50-850	0-1000
Distance spindle nose to table center	mm	125-925	125-1225	180-1180
Spindle taper	-	BT-40	BT-50	BT-50
Spindle speed	rpm	8000	6000	6000
Main motor power	kw	11/15	15/18.5	15/18.5
X/Y/Z-axis servo motor(FANUC)	-	Bis30/Bis30/Bis30	Bis30/Bis30/Bis30	Bis40/Bis40/Bis40
X/Y/Z-axis cutting feed speed	mm/min	1-8000	1-8000	1-8000
X/Y/Z-axis rapid feed speed	m/min	24/24/24	24/24/24	24/24/24
X/Y/Z-axis rails type	-	Linear	X/Z: Linear/Y: sliding	Linear
X/Y/Z-axis positioning accuracy	mm	±0.008	±0.008	±0.008
X/Y/Z-axis repeat positioning accuracy	mm	±0.005	±0.005	±0.005
B-axis positioning accuracy	°	±10"	±10"	±10"
ATC capacity(style)	tools	24(Disc)	24(Disc)	40(Chain)
Tool change time(tool to tool)	sec	2.7	5	5
Max. tool weight	kg	8	18	20
Max. tool diameter	mm	Φ78/Φ125	Φ112/Φ200	Φ125/Φ230
Max. tool length	mm	300	300	300
Power supply	Kva	30	40	50
Air pressure require	kg/cm2	8	8	8
Machine weight	kg	9500	12000	15000
Overall dimension(LxWxH)	mm	3800x3200x3280	4860x3600x3460	6200x4800x3800

MAIN CONFIGURATION & ACCESSORIES: 1. Resin sand casting; 2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC,disc type and chain type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option; 10. NC rotary worktable (B axis); 11. Work lamp; 12. Pilot lamp; 13. USB and LAN interface; 14. Manual pulse generator (MPG); 15. Centralized automatic lubrication system. 16. Cooling system. 17. Heat exchanger for electrical cabinet ; 18. Leveling blocks & bolts; 19. Toolbox and tools; 20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES: 1. ZF or BF reducer; 2. Circular Coolant Nozzle; 3. Coolant through spindle (CTS); 4. Spindle oil cooler; 5. Air conditioner (A/C) for electrical cabinet; 6. Auto. Tool length measurement system; 7. Auto. Workpiece measurement systems; 8. Optional with sprial type chip conveyor and chain type chip conveyor.

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
