USB / RS232 / 1d 2D Qr Barcode Code Scanner HS-6603b

Product Description

USB / RS232 / 1D 2D QR Barcode Code Scanner HS6603B Product Description HS-6603B is a 2D scanning gun with excellent performance. It can quickly identify all kinds of one-dimensional codes and TWO-DIMENSIONAL codes and has an excellent ability to read bar codes on mobile phone screens. The appearance adopts the ergonomic design, and feels comfortable, and convenient to hold. Support a variety of data modes, compatible with WinXP, Win7, Win10, Ios, Android, INDUSTRIAL PC, server, and other devices, plug, and play, simple and convenient.

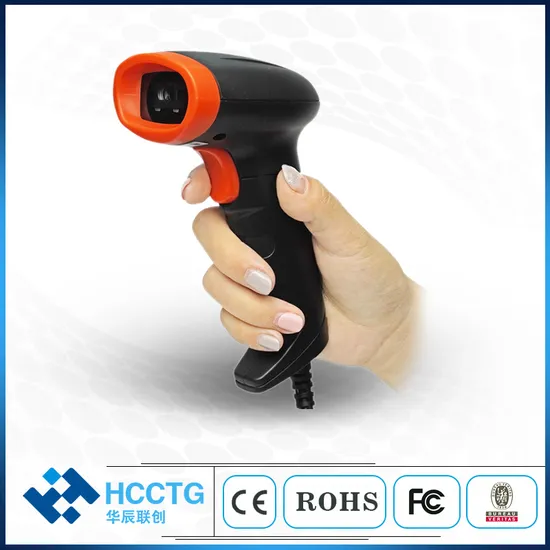

Detailed Photos
Product Parameters

Image sensor	640×480 CMOS		Floodlight	White LED
Resolution	640px * 480px		Focusing lamp	Red LED
Read code system	1D	EAN-8, EAN-13, UPC-E, UPC-A,ISBN,ISSN,Code128, Code 39, Code 93, Code 11, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25,Plessey, MSI-Plessey
	2D	QR Code,Micro QR, Data Matrix ,PDF417
Accuracy	≥5mil
Typical	EAN-13	5mil 45mm~130mm	QR Code	15mil 19mm~170mm
		13mil 45mm~230mm		30mil 30mm~260mm
Sensitivity	Tilt	± 55°	Contrast ratio	≥20%
	Rotate	360°	Field of view angle	level	36°
	Deflection	± 55°		vertical	27°
Prompt mode	Beep,LED
Reading mode	Trigger mode, Induction mode, Continuous mode, Command mode,Batch mode
Setting method	1.Scan Settings code Settings 2.Serial port command Settings		Program update	Data connection updated online
Data interface	USB KBW,USB CDC,USB HID-POS,RS 232,TTL
Communication interface	USB,RS 232,TTL 232
Working voltage	5V		Working current	150mA
			Standby current	70mA
Relative humidity	5%~95% (No condensation)		Working Temperature	-20ºC~+60ºC
Light source	0~100,000LUX		Storage Temperature	-40ºC~+80ºC
Appearance size	67(W)*113.2(D)*158(H) mm		Weight	175g
Package size	205*105*80 mm		Weight	245g
Parts	cable(Option 1):USB / RS 232 / TTL

FAQ
1. Are you a manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment products & Solutions for 14 years. We can provide OEM / ODM customized service according to our customers' various applications and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order a sample. All the contents are in a CD ROM with samples together.
3. What warranty is for the products?
According to our warranty policy, we will provide 12 months of warranty time from the shipment date for our all products (Excluding the consumable parts). As for the mass order, we will provide a certain proportion of spare parts or RMA machines for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get a free sample?
Sorry, generally we would not provide the free sample. If the customer confirms the specification and price, they can order the sample first for testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept PayPal. Besides, we accept Western Union, T/T, L/C Secure payment, and so on.
7. What's the delivery time?
Generally, samples can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depending on the exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us of the Sea Port to check which ship line.
By Air: Inform us of the Airport to check which flight.
Or pick up by the customers.
9. What is the after-sale service?
a. All products will provide 12 month's warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in the field;
d. As for the returned failed products, we will fix them and return them to the customers within one week after we received them;
