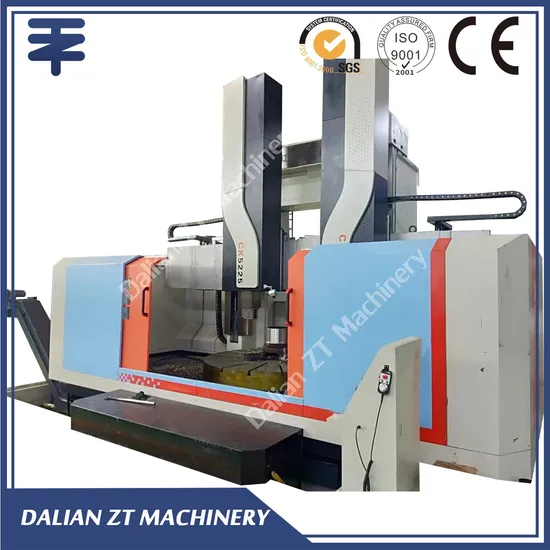

Large & Heavy Vertical Turning CNC Lathe Worktable Diameter 2500mm
| US$100,000.00-200,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CK5225
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Turning Diameter
2500mm
Table Dia.
2250mm
Max. Workpiece Height
1800mm
Max. Workpiece Weight
15000kg
Left tool post shank section
40*50mm
Main motor power
55kW
Max torque of table
63 KN.m
Transport Package
Wooden Case
Specification
Overall size: 2360X2270X2800mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84581900
Production Capacity
200 Sets/Year
Product Description
Features: Workpiece height 2000mm;Max. workpiece weight 16T;
Worktable diameter 2250mm;
Right tool post is controlled by CNC controller, ram section 240*240mm; vertical travel of ram 1250mm;
Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming
| Specification | Model Unit | CK5225H |
| Max turning diameter | mm | 2500 |
| Max height of workpiece | mm | 1800 |
| Max weight of the workpiece | t | 15 |
| Table diameter | mm | 2250 |
| Table speed step | 4 ranges; stepless in each range | |
| Worktable speed range | 2-63r/min | |
| Max torque of table | KN.m | 63 |
| Right tool post (CNC control) | ||
| Rapid feed of right tool post | mm/min | 2000 |
| Right tool post feed step | stepless | |
| Right tool post feed range | mm/min | 0.1-1000 |
| Horizontal travel of right tool post | mm | -20-1500 |
| Vertical travel of ram in right tool post | mm | 1250 |
| Ram section of rapid tool post | mm | 240*240 |
| Right tool post shank section | mm | 40*50 |
| Max. cutting force of right tool post | N | 35000 |
| Left tool post (PLC control) | ||
| Rapid feedratio of left tool post | mm/min | 2000 |
| Feedratio steps of left tool post | stepless | |
| Feed range of left tool post | mm/min | 0.1-500 |
| Horizontal travel of left tool post | mm | -20-1500 |
| Swivel degree of left tool post | ° | ±30 |
| Vertical travel of left tool post ram | mm | 1250 |
| Ram section of left tool post | mm | 240*240 |
| Left tool post shank section | mm | 40*50 |
| Max. cutting force of left tool post | N | 28000 |
| Travel of cross beam | mm | 1650 |
| Lift speed of cross beam | mm/min | 350 |
| Main motor power | kW | 55 |
PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
