Wood Chipper Biomass Horizontal Grinder Wood Pulverizer

Wood Chipper Biomass Horizontal Grinder Wood Pulverizer

US$32,000.00-125,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HX1400, 1600, 2000
Cutter Material
Hard Alloy
Drive
Electric
Object
Wood
Type
Roller Crusher
Name
Horizontal Grinder
Rotor Type
Drum
Feed Conveyor
Chain Conveyor
out Conveyor
Bet Conveyor
Cutter
Blade or Hammer
Principle
Roller Culling
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
>300MPa
Tongs′ Features
Universal Tongs
After-Sales Service
Technical Support Through Life Span of The Machine
Warranty
1 Year
Transport Package
Fr
Specification
ISO CE
Trademark
HX
Origin
Shandong, China
HS Code
8465990000
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
1000.00cm * 290.00cm * 340.00cm
Package Gross Weight
25000.000kg

Product Description

Product DescriptionMachine stationary type with electric motor

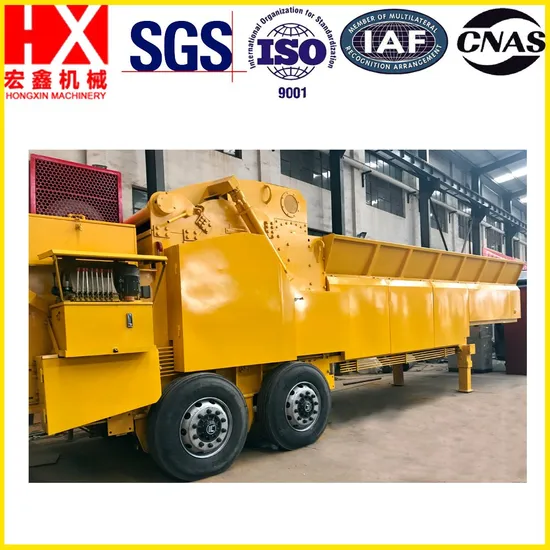

Machine mobile type with diesel engine on wheels
Machine mobile type with diesel engine on crawler trackHX horizontal grinder is a dedicated equipment for biomass power plant for fuel reserve and MDF plant. Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).Product StructureThe wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system and electric control system.
Detailed PhotosThe feeding chain conveyor is made of high manganese steel with the thickness 10mm, which is a typical anti-wear steel, cast organization is austenite and carbide. Via the water toughening treatment, the surface would be rapidly hardening and that make its internal remains the good toughness and deformability under the condition of strong impact and extrusion and the hardening layer with good wear resistance. These characteristics determine that the service life can be up to 22000 hours, which is better than the traditional belt's 2000 hours. In addition, the traditional belt' s with small friction coefficient which will cause the feed speed to be slow and not smooth, but the chain type solved all the above questions.dead knife assembly is made of cast steel and machined as a whole part by the machining center, more accurate and more durable.
Unique dead knife design.
Thanks to the decades of experience, we create a special shock absorbing buffering dead knife design and already got the patent.
This design protects the rotor, decreased the maintenance cost and extends the life span of the machine.
All rotor will go through strict Dynamic balance test to guarantee running stability after finish manufacturing and assembling.
High strength steel, stereoscopic welded, more durableThe main motor starts by a soft start switch, and the circuit has an overload protection device, which automatically cuts off the circuit when overloaded.
Feed roller and chain conveyor can be adjusted automatically by the frequency conversion that makes the operation is safe and simple. According to the specification and quantity of raw materials, the feeding speed can be adjusted automatically to save energy and promote efficiency. It can adjust feed speed automatically according to the load of main motor to avoid idle running of machine.
Product Parameters
ModelHX1400-800HX1600-600HX1600-800HX2000-1000
Rotor diameter (mm)110080011001400
Cutter quantity (piece)8 or 288 or 308 or 366 or 42
Input size (mm)1400-8001600-6001600-8002000-1000
Rotor rotation speed (rpm)900760900432
Max material diameter (mm)400300400500
Production capacity (tph)25-3025-3035-4050-70
Main motor power (kw)250250315400
Chain feed conveyor length (m)6668
Discharge conveyor length(m)10101010
Weight (t)26232752
Dimension (m)10x2.62x3.4m 10.5x2.64x311.03x2.85x3.413.8x3.28x3.9
ModelHX1260-500HX1400-500
Rotor diameter (mm)800800
Cutter quantity (piece)8 or 248 or 28
Input size (mm)1250-5001400-500
Rotor rotation speed (rpm)650760
Max material diameter (mm)300300
Production capacity (tph)12-1515-20
Main motor power (kw)160200
Chain feed conveyor length (m)55
Discharge conveyor length(m)1010
Weight (t)1416
Dimension (m)8.1 x 2.2 x 2.68.5 x 2.5 x 2.7
Manufacturing processPackaging & ShippingMachine working site
Output chips photo
CertificationsCompany ProfileShandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
