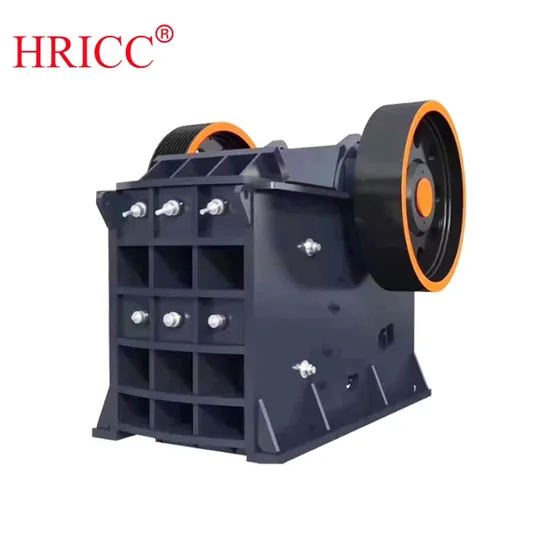

PE Stone Mining Jaw Crusher

PE Stone Mining Jaw Crusher

US$6,000.00
1-4 Pieces
US$5,800.00
5-9 Pieces
US$5,500.00
10+ Pieces

Basic Info.

Cutter Material
Hard Alloy
Drive
Electric
Feed Size
125mm-750mm
Jaw Plate Material
Hard Alloy
Object
Basalt, Copper Ore, Gold Ore, Granite, Iron Ore, Limestone, Quartz
Product Name
PE Jaw Crusher
Keywords
Mining Crusher
Core Components
Motor
Motor Type
AC Motor
Color
Customized
Crusher Feed Size
125mm~750mm
Crushing Type
Coarse Crushing/Fine Crushing
Applicable Materials
Medium Particle Size for Bulk Materials
Crushing Compressive Strength
Not Exceeding 320MPa
Key Selling Points
Easy to Operate
Features
Simple Structure, Large Crushing Ratio
Usage
Mining and Construction
Condition
New
MOQ
Low MOQ
OEM & ODM Custom
Accept
Transport Package
Standard Packaging or Customized
Specification
Standard specifications or customized
Trademark
HRICC
Origin
Shandong, China
HS Code
8474209000
Production Capacity
3000piece/Year

Product Description

Product Description
Jaw Crusher
A jaw crusher is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with a compressive strength of less than 320Mpa. It is divided into coarse crushing and fine crushing. PE series products have complete specifications, and their feed size is 125 mm~750 mm. It is the preferred equipment for primary crushing.
The Electric Motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the elbow plate and the movable jaw increases, thus pushing the movable jaw plate to the fixed jaw plate. At the same time, the material is crushed or chopped, to achieve the goal of fragmentation, when moving the jaw down. The angle between the toggle plate and the smaller. The movable jaw plate leaves the fixed jaw plate under the movable jaw becomes the action of the pull rod and the spring. At this time, the broken material has been discharged from the lower opening of the crushing chamber with the continuous rotation of the motor, the movable jaw of the crusher moves periodically to crush and excrete material, thus realizing batch productionPE jaw crusher is a kind of crushing equipment widely used in many industries such as mining, building materials, chemical industry, etc. It is mainly used for coarse and medium crushing of ores and rocks of various hardness and can crush large pieces of materials into smaller particles, providing suitable material particle size for subsequent grinding, screening ,and other processes.Product Parameters
PE JAW CRUSHER SPECIFICATION
Product NamePE Jaw Crusher
KeywordsMining Crusher
Core ComponentsMotor
Motor TypeAC Motor
ColorCustomized
Crusher Feed Size125mm~750mm
Crushing TypeCoarse Crushing/Fine Crushing
Applicable MaterialsMedium Particle Size For Bulk Materials
Crushing Compressive StrengthNot Exceeding 320MPa
Key Selling PointsEasy to Operate
FeaturesSimple Structure,Large Crushing Ratio,High Production Efficiency
UsageMining And Construction
ConditionNew
MOQLow MOQ
OEM & ODM CustomAccept
There are errors in measurement, please refer to the actual situation.
SPECIFICATION
Production(t/h)Notor power(kw)Weight(t)Dimensions(mm)
2-65.51.1900*750*950
10-201531450*1280*1350
15-3018.541450*1350*1350
20-503061700*1700*1650
40-9045112000*1950*1900
50-1205512.52200*1960*1950
90-20075182400*2230*2400
100-2607519.52400*2280*2400
150-35090262500*2370*2780
300-350110453200*2820*3260
500-800160753850*3050*4000
800-1000200904050*3150*4200
900-13002201225100*4700*4300
1000-15003551695600*5020*4950
Detailed Photos
STRONG CRUSHING FORCE
PE jaw crusher adopts advanced design principles, and the bite angle of the movable jaw and the fixed jaw is carefully calculated to generate strong crushing force. When the material enters the crushing chamber, the movable jaw and the fixed jaw work closely together to exert huge extrusion and shearing forces on the material, easily crushing ores and rocks of various hardness.COMPACT STRUCTURE
The structural design of the equipment is very compact, and the layout of each component is reasonable. The frame adopts an integrated welded structure, which is not only sturdy and durable, but also occupies a small area. The installation position of key components such as the movable jaw and the fixed jaw is precise, making the entire crusher more stable during operation.EASY MAINTENANCE
The maintenance of the PE jaw crusher is relatively simple and convenient. Its wearing parts such as the jaw plate are quickly replaced, because the fixing method of the jaw plate is reasonably designed, usually fixed with wedges or bolts, and the staff can complete the replacement of the jaw plate in a short time.STABLE PERFORMANCE
During the long-term operation, the PE jaw crusher has shown good performance stability. Its transmission system uses high-quality parts, operates smoothly, and has low noise. Key components such as the eccentric shaft and flywheel are precisely processed and dynamically balanced to ensure uniform and stable reciprocating motion of the movable jaw.WIDE RANGE OF APPLICATIONS
PE jaw crusher is suitable for crushing a variety of materials, whether it is high-hardness ores such as iron ore and copper ore, or low-hardness limestone and coal gangue, etc., it can be effectively crushed. It can be used for coarse crushing to crush large pieces of material into medium particle size, and can also be used for medium crushing to further reduce the particle size of the material.FAQ
Q1: Are you a factory or trading company?
A: We were established in 2009, as a large-scale integrated enterprise of engineering equipment research and development.
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Zibo City, Shandong Province, China. Contact us ahead before you go visit, then we can fully arrange the schedule and meet you.Welcome to visit us!
Q3: How does your factory do regarding quality control?
A: Quality is the most important principle. Hricc people always attach great importance to quality control from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q4: Is the product customized?
A4: Various types can be customized.
Q5: What is your warranty?
A: Our warranty is 12 months after receiving the jaw crusher. During the warranty period, replace the damaged parts free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
Q6: What are your terms of payment?
A: TT 30% as the advance payment and TT 70% after inspection before shipping.
B: 100% Irrevocable L/C at sight.
Q7: What products do you produce?
A: Excavators, brick-making machines, shotcrete machines, and other road construction and agricultural household machinery and equipment.
