Product Description

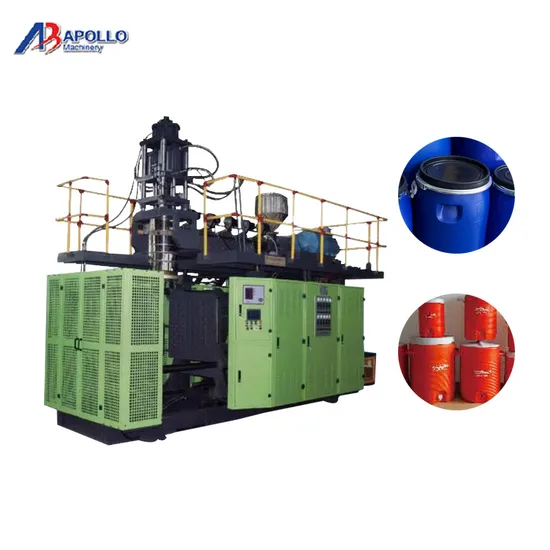

Automatic HDPE Jerry Cans making machine energy saving type
Extrusion blow moulding machine
Jerry cans blow moulding machine
Model No.: ABLD80(single station single die head)
ABLD80 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 30L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Main parts of Machine Picture Explanation
Product Parameters

This part is the full electric components of the machine:

Max. Product volume	30 liters
Output capacity	80~120pc/h
Screw diameter	80 mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max.size of mold	550X650mm
Mold stroke	350-780mm
Max.die diameter	280mm
Die heating power	5.3 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
