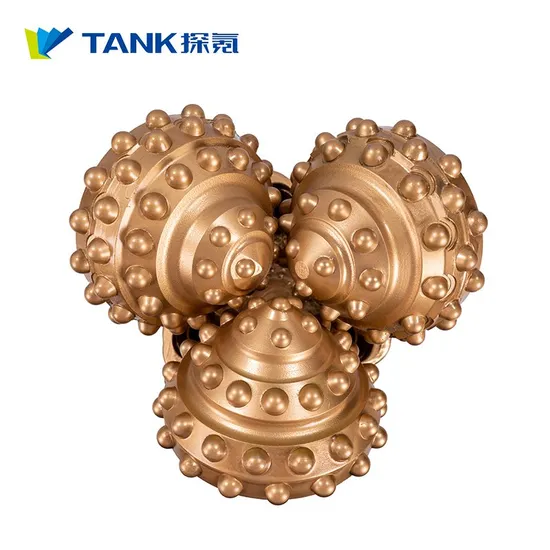

Steel Milled Tooth API Rock Roller Tricone Drill Bit for Water Well Drilling

Product Description

Company Profile
Tank have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices .
We ship to more than 60 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.
Product Description
According to cutting material,tirocne bit can be divided into TCI bit and Steel Tooth Bit .
TCI is short for Tungsten Carbide Insert, tungsten carbide is regular hard material in rock drilling field, another material is diamond.Inserts means Tungsten Carbide teeth that's fitting on cones of rotary drilling roller cone bits.API TCI tricone drill bit IADC637 have type of Rubber /Elastomer sealed bearing and Metal sealed bearing. We suggest that we had better choose metal face sealed bearing bits for deep rock wells with hard formations.For very deep well drilling, we recommend Metal-face sealed bearing tricone bits in drilling depth exceeds 1000 meters, For hard rock and long distance trenchless pilot hole drilling that length exceeds 300 meters we also recommend metal-face sealed bearing tricone bits.For water well drilling, shallow well drilling or shorter distance trenchless pilot hole drilling projects, elastomer(rubber) sealed bearing tricone bits has better cost performance
Product Parameters

Product	Tricone Bit
Model	TCI BIT, STEEL TOOTH BIT
IADC CODE	116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes	From 2 7/8 to 26" larger sizes for hole opener bit ,reamer bit
advantage	most favorable price and best quality
bearing type	sealed bearing and non-sealed bearing metal sealed journal bearing rubber sealed journal bearing aircooled bearing type
Formation or layer	Soft, medium soft, hard, medium hard, very hard formation
Button size (extra features)	Button bit, saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gauge protection
Packing	Wooden case
Delivery terms	By sea or by air
Market	Canada, USA, Middle east ,Africa, Europe
Application	Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

Regular Models of Tricone Bits
Regular Sizes	Regular IADC	API Reg Pin	Make-up Torque(N.m)
3 7/8"(98.4mm)	126/216/517/537/637	2 3/8	4100~4700
4 5/8"(117.4mm)	126/216/517/537/637	2 7/8	6100~7500
5 1/2"(139.7mm)	126/216/517/537/617/637	3 1/2	9500~12200
5 5/8"(142.8mm)	126/216/517/537/617/637	3 1/2	9500~12200
5 7/8"(149.2mm)	126/216/517/537/617/637	3 1/2	9500~12200
6"(152.4mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/4"(158.7mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
6 1/2"(165mm)	126/127/216/517/537/617/637	3 1/2	9500~12200
7 1/2"(190mm)	126/216/517/537/637	4 1/2	16300~21700
7 5/8"(193mm)	126/216/517/537/637	4 1/2	16300~21700
7 7/8"(200mm)	126/216/517/537/637	4 1/2	16300~21700
8 1/2"(215.9mm)	117/127/217/437/517/537/617/637	4 1/2	16300~21700
9 1/2"(241.3mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
9 7/8"(250.8mm)	117/127/217/437/517/537/617/637	6 5/8	38000~43400
10 5/8(269.8mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
11 5/8(295.3mm)	117/127/137/217/517/537/617/637	6 5/8	38000~43400
12 1/4"(311.1mm)	114/127/217/437/517/537/617/637	6 5/8	38000~43400
13 5/8"(346.0mm)	127/217/517/537/617/637/737/837	6 5/8	38000~43400
14 3/4"(374.6mm)	127/217/517/537/617/637/737/837	7 5/8	46100~54200
17 1/2"(444.5mm)	114/115/125/215/515/535/537/615/635	7 5/8	46100~54200
20''(508.0mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
22''(558.8mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
24''(609.6mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200
26"(660.4mm)	114/115/125/215/515/535/537/615	7 5/8	46100~54200

Detailed Photos
Certifications
Packaging & Shipping
FAQ
Q1. Can I have a sample order?
Answer:Yes, we welcome sample order to test. Mixed samples are acceptable.
Q2. If you accept customized according to customers' requirements?
Answer: Yes, we accept customized, no matter what size and type, and MOQ is 1 piece. And we also provide OEM service. You can provide your design, and we sign CA with each other.
Q3. Are you original manufacturer or trading company?
Answer: We are an integrated corporation specialized in manufacturing and exporting.
Q4. What is your main products?
Answer: Our main products including PDC Mining Drill Bits, PDC Oil Drill Bits, DTH Hammer, Down the Hole Bits, Top Hammer Drill Bits, Tricone bits,Drill Rod, PDC Cutters.
Q5. What type of drill bit should I be using?
Answer: When asking that question there are a lot of variables: the formation you are drilling in; the size of hole your drilling; the size pump you have; if you are drilling with mud or air; and the size of your rig. Call us on our 24 hour phone number or write us by email, we will help you make the right bit choice.
Q6. Do you provide after-sales service?
Answer: Timely after-sale assistance shall be provided all the time. Free change once the problem caused by the quality issue.
Q7. What is the production capacity of your factory?
Answer: Our production capacity is about 36,000 to 50,000 bits per month.
Q8. What is your delivery time?
Answer: 3-7 days for frequent ordered models&size which we always hold stocks. 15-30 days for newly produced goods and customization products.
Q9. What are your main markets?
Answer:Our products are exported to Australia, Chile, Canada, South Africa, Ethiopia, Malaysia, South Korea, Brazil, Russia, Norway and more than 30 countries.
